Female Caps

CMW Female Caps

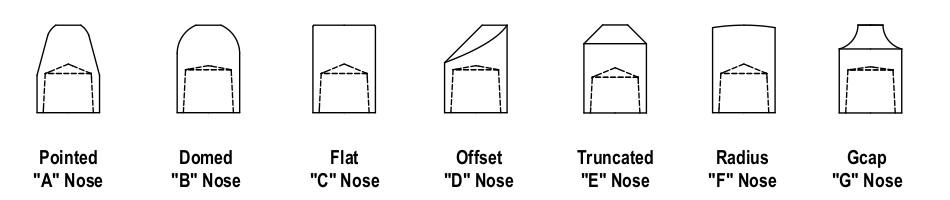

Female Caps are available in a variety of materials and nose configurations to meet any design requirement. They are an ideal choice for automated or high production rate environements because the caps can be changed quickly when the weld face wears out.

Female caps are the most economical cap because they require less copper to manufacture than male caps.

PartDescription RWMA Material Type RWMA Taper [T] Nose Type Overall Length [A] Outer Diameter [B] Welding Face Dia. [C] Unit of Measure Offset / Truncated Angle [D] Nose Engagement Angle [D]
2-MPA14Z
MPA14Z CMW RWMA Class 1 - C15000 4RW Cap Taper A 0.84000 0.50000 0.188 IN
2-MPA15Z
MPA15Z CMW RWMA Class 1 - C15000 5RW Cap Taper A 0.88000 0.62500 0.25 IN
2-MPA16Z
MPA16Z CMW RWMA Class 1 - C15000 6RW Cap Taper A 1.00000 0.75000 0.313 IN
2-MPA24
MPA24 CMW RWMA Class 2 - C18200 4RW Cap Taper A 0.84000 0.50000 0.188 IN
2-MPA241Z-01
MPA241Z-01 CMW RWMA Class 2 - C18150 1:10 A 18.00000 13.00000 5 mm radius MM
2-MPA24Z
MPA24Z CMW RWMA Class 2 - C18150 4RW Cap Taper A 0.84000 0.50000 0.188 IN
2-MPA25
MPA25 CMW RWMA Class 2 - C18200 5RW Cap Taper A 0.88000 0.62500 0.25 IN
2-MPA25Z
MPA25Z CMW RWMA Class 2 - C18150 5RW Cap Taper A 0.88000 0.62500 0.25 IN
2-MPA25Z-03
MPA25Z-03 CMW RWMA Class 2 - C18150 1:10 A 20.00000 16.00000 6 mm radius MM
2-MPA25Z-09
MPA25Z-09 CMW RWMA Class 2 - C18150 1:10 A 20.00000 16.00000 6 mm radius MM
2-MPA26
MPA26 CMW RWMA Class 2 - C18200 6RW Cap Taper A 1.00000 0.75000 0.313 IN
2-MPA26Z
MPA26Z CMW RWMA Class 2 - C18150 6RW Cap Taper A 1.00000 0.75000 0.313 IN
2-MPB14Z
MPB14Z CMW RWMA Class 1 - C15000 4RW Cap Taper B 0.84000 0.50000 0.188 IN
2-MPB15Z
MPB15Z CMW RWMA Class 1 - C15000 5RW Cap Taper B 0.88000 0.62500 .188 IN
2-MPB16Z
MPB16Z CMW RWMA Class 1 - C15000 6RW Cap Taper B 1.00000 0.75000 0.25 IN
2-MPB24
MPB24 CMW RWMA Class 2 - C18200 4RW Cap Taper B 0.84000 0.50000 0.188 IN
2-MPB241Z-01
MPB241Z-01 CMW RWMA Class 2 - C18150 1:10 B 18.00000 13.00000 6.5 mm radius MM
2-MPB24Z
MPB24Z CMW RWMA Class 2 - C18150 4RW Cap Taper B 0.84000 0.50000 0.188 IN
2-MPB25
MPB25 CMW RWMA Class 2 - C18200 5RW Cap Taper B 0.88000 0.62500 0.188 IN
2-MPB25Z
MPB25Z CMW RWMA Class 2 - C18150 5RW Cap Taper B 0.88000 0.62500 0.188 IN
2-MPB25Z-03
MPB25Z-03 CMW RWMA Class 2 - C18150 5RW Cap Taper B 0.78700 0.62500 .313 inch radius IN
2-MPB26
MPB26 CMW RWMA Class 2 - C18200 6RW Cap Taper B 1.00000 0.75000 0.25 IN
2-MPB26Z
MPB26Z CMW RWMA Class 2 - C18150 6RW Cap Taper B 1.00000 0.75000 0.25 IN
2-MPC14Z
MPC14Z CMW RWMA Class 1 - C15000 4RW Cap Taper C 0.84000 0.50000 0.5 IN
2-MPC15Z
MPC15Z CMW RWMA Class 1 - C15000 5RW Cap Taper C 0.88000 0.62500 0.625 IN
2-MPC24
MPC24 CMW RWMA Class 2 - C18200 4RW Cap Taper C 0.84000 0.50000 0.5 IN
2-MPC241Z-01
MPC241Z-01 CMW RWMA Class 2 - C18150 1:10 C 18.00000 13.00000 13 MM
2-MPC24Z
MPC24Z CMW RWMA Class 2 - C18150 4RW Cap Taper C 0.84000 0.50000 0.5 IN
2-MPC25
MPC25 CMW RWMA Class 2 - C18200 5RW Cap Taper C 0.88000 0.62500 0.625 IN
2-MPC25Z
MPC25Z CMW RWMA Class 2 - C18150 5RW Cap Taper C 0.88000 0.62500 0.625 IN
2-MPC25Z-02
MPC25Z-02 CMW RWMA Class 2 - C18150 1:10 C 20.00000 16.00000 16 MM
2-MPC26
MPC26 CMW RWMA Class 2 - C18200 6RW Cap Taper C 1.00000 0.75000 0.75 IN
2-MPC26Z
MPC26Z CMW RWMA Class 2 - C18150 6RW Cap Taper C 1.00000 0.75000 0.75 IN
2-MPD14Z
MPD14Z CMW RWMA Class 1 - C15000 4RW Cap Taper D 0.84000 0.50000 0.188 IN 40.0
2-MPD15Z
MPD15Z CMW RWMA Class 1 - C15000 5RW Cap Taper D 0.88000 0.62500 0.25 IN 40.0
2-MPD24
MPD24 CMW RWMA Class 2 - C18200 4RW Cap Taper D 0.84000 0.50000 0.188 IN 40.0
2-MPD241Z-01
MPD241Z-01 CMW RWMA Class 2 - C18150 1:10 D 18.00000 13.00000 5 MM 30.0
2-MPD24Z
MPD24Z CMW RWMA Class 2 - C18150 4RW Cap Taper D 0.84000 0.50000 0.188 IN 40.0
2-MPD25
MPD25 CMW RWMA Class 2 - C18200 5RW Cap Taper D 0.88000 0.62500 0.25 IN 40.0
2-MPD25Z
MPD25Z CMW RWMA Class 2 - C18150 5RW Cap Taper D 0.88000 0.62500 0.25 IN 40.0
2-MPD25Z-02
MPD25Z-02 CMW RWMA Class 2 - C18150 1:10 D 20.00000 16.00000 6 MM 30.0
2-MPD26
MPD26 CMW RWMA Class 2 - C18200 6RW Cap Taper D 1.00000 0.75000 0.313 IN 45.0
2-MPD26Z
MPD26Z CMW RWMA Class 2 - C18150 6RW Cap Taper D 1.00000 0.75000 0.313 IN 45.0
2-MPE14Z
MPE14Z CMW RWMA Class 1 - C15000 4RW Cap Taper E 0.84000 0.50000 0.188 IN 45.0
2-MPE15Z
MPE15Z CMW RWMA Class 1 - C15000 5RW Cap Taper E 0.88000 0.62500 0.25 IN 45.0
2-MPE24
MPE24 CMW RWMA Class 2 - C18200 4RW Cap Taper E 0.84000 0.50000 0.188 IN 45.0
2-MPE241Z-01
MPE241Z-01 CMW RWMA Class 2 - C18150 1:10 E 18.00000 13.00000 5 MM 30.0
2-MPE24Z
MPE24Z CMW RWMA Class 2 - C18150 4RW Cap Taper E 0.84000 0.50000 0.188 IN 45.0
2-MPE25
MPE25 CMW RWMA Class 2 - C18200 5RW Cap Taper E 0.88000 0.62500 0.25 IN 45.0
2-MPE25Z
MPE25Z CMW RWMA Class 2 - C18150 5RW Cap Taper E 0.88000 0.62500 0.25 IN 45.0
2-MPE25Z-02
MPE25Z-02 CMW RWMA Class 2 - C18150 1:10 E 20.00000 16.00000 6 MM 30.0
2-MPE26
MPE26 CMW RWMA Class 2 - C18200 6RW Cap Taper E 1.00000 0.75000 0.313 IN 45.0
2-MPE26Z
MPE26Z CMW RWMA Class 2 - C18150 6RW Cap Taper E 1.00000 0.75000 0.313 IN 45.0
2-MPF14Z
MPF14Z CMW RWMA Class 1 - C15000 4RW Cap Taper F 0.84000 0.50000 2 inch radius IN
2-MPF15Z
MPF15Z CMW RWMA Class 1 - C15000 5RW Cap Taper F 0.88000 0.62500 2 inch radius IN
2-MPF16Z
MPF16Z CMW RWMA Class 1 - C15000 6RW Cap Taper F 1.00000 0.75000 4 inch radius IN
2-MPF24
MPF24 CMW RWMA Class 2 - C18200 4RW Cap Taper F 0.84000 0.50000 2 inch radius IN
2-MPF241Z-01
MPF241Z-01 CMW RWMA Class 2 - C18150 1:10 F 18.00000 13.00000 32 MM radius MM
2-MPF24Z
MPF24Z CMW RWMA Class 2 - C18150 4RW Cap Taper F 0.84000 0.50000 2 inch radius IN
2-MPF25
MPF25 CMW RWMA Class 2 - C18200 5RW Cap Taper F 0.88000 0.62500 2 inch radius IN
2-MPF25Z
MPF25Z CMW RWMA Class 2 - C18150 5RW Cap Taper F 0.88000 0.62500 2 inch radius IN
2-MPF25Z-01
MPF25Z-01 CMW RWMA Class 2 - C18150 1:10 F 20.00000 16.00000 40 MM radius MM
2-MPF26
MPF26 CMW RWMA Class 2 - C18200 6RW Cap Taper F 1.00000 0.75000 4 inch radius IN
2-MPG244
MPG244 CMW RWMA Class 2 - C18200 4RW Cap Taper G 0.84000 0.50000 0.25 IN
2-MPG254
MPG254 CMW RWMA Class 2 - C18200 5RW Cap Taper G 0.88000 0.62500 0.25 IN
2-MPG255
MPG255 CMW RWMA Class 2 - C18200 5RW Cap Taper G 0.88000 0.62500 0.313 IN
2-MPG256
MPG256 CMW RWMA Class 2 - C18200 5RW Cap Taper G 0.88000 0.62500 0.375 IN
2-MPG266
MPG266 CMW RWMA Class 2 - C18200 6RW Cap Taper G 1.00000 0.75000 0.375 IN
2-MPGD244
MPGD244 CMW RWMA Class 2 - C18200 4RW Cap Taper G 0.84000 0.50000 0.25 IN
2-MPGD244-3001
MPGD244-3001 CMW RWMA Class 2 - C18200 4RW Cap Taper G 0.84000 0.50000 0.25 IN 30.0
2-MPGD254
MPGD254 CMW RWMA Class 2 - C18200 5RW Cap Taper G 0.88000 0.62500 0.25 IN
2-MPGD254-1501
MPGD254-1501 CMW RWMA Class 2 - C18200 5RW Cap Taper G 0.88000 0.62500 0.25 IN 15.0
2-MPGD254-3001
MPGD254-3001 CMW RWMA Class 2 - C18200 5RW Cap Taper G 0.88000 0.62500 0.25 IN 30.0
2-MPGD255
MPGD255 CMW RWMA Class 2 - C18200 5RW Cap Taper G 0.88000 0.62500 0.313 IN
2-MPGD255-1501
MPGD255-1501 CMW RWMA Class 2 - C18200 5RW Cap Taper G 0.88000 0.62500 0.313 IN 15.0
2-MPGD255-3001
MPGD255-3001 CMW RWMA Class 2 - C18200 5RW Cap Taper G 0.88000 0.62500 0.313 IN 30.0
