• MPG266 CMW
  • Sketch for MPG266 CMW


Part #: 2-MPG266

Request 3D Model

Request 3D Model

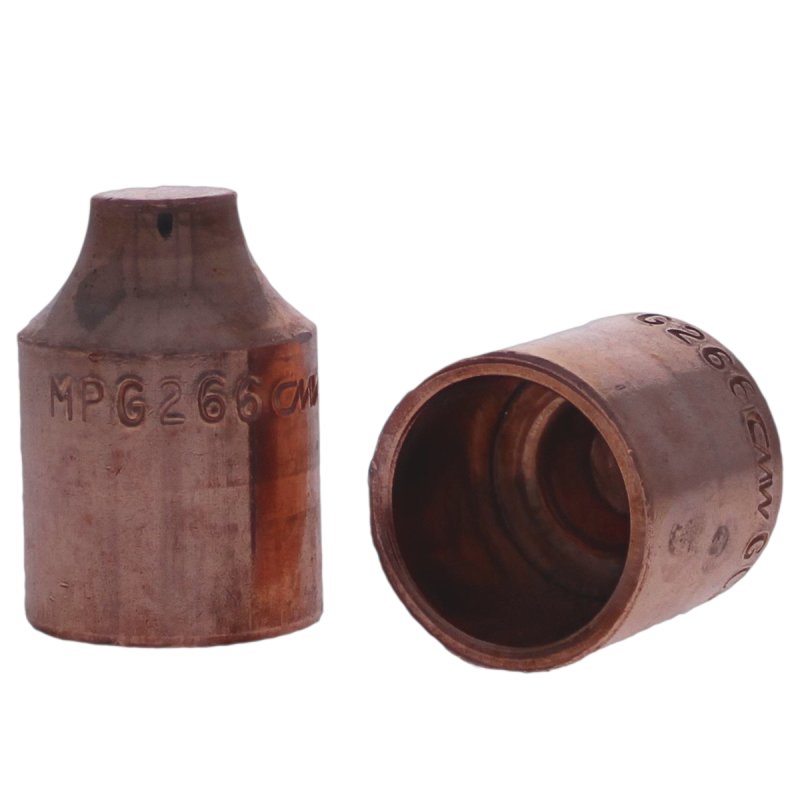

Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 1.0000 IN
  • The outside diameter is 0.750 IN
  • The part mounts via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
  • The G nose is a patented design for welding galvanized steels. It does not stick on the first weld and increases tip life by 10 times before redressing by rolling away the brassing on the weld face. The GCAP also consumes up 25% less electric power. (Patents 19,954,687; 5,015,816; 5,126,528)
  • The weld face is 0.375 IN


RWMA Material Type RWMA Class 2 - C18200
RWMA Taper [T] 6RW Cap Taper
Nose Type G
Overall Length [A] 1.00000
Outer Diameter [B] 0.75000
Welding Face Dia. [C] 0.375
Unit of Measure IN
