• MPD25Z-02 CMW
  • Sketch for MPD25Z-02 CMW


Part #: 2-MPD25Z-02

Request 3D Model

Request 3D Model

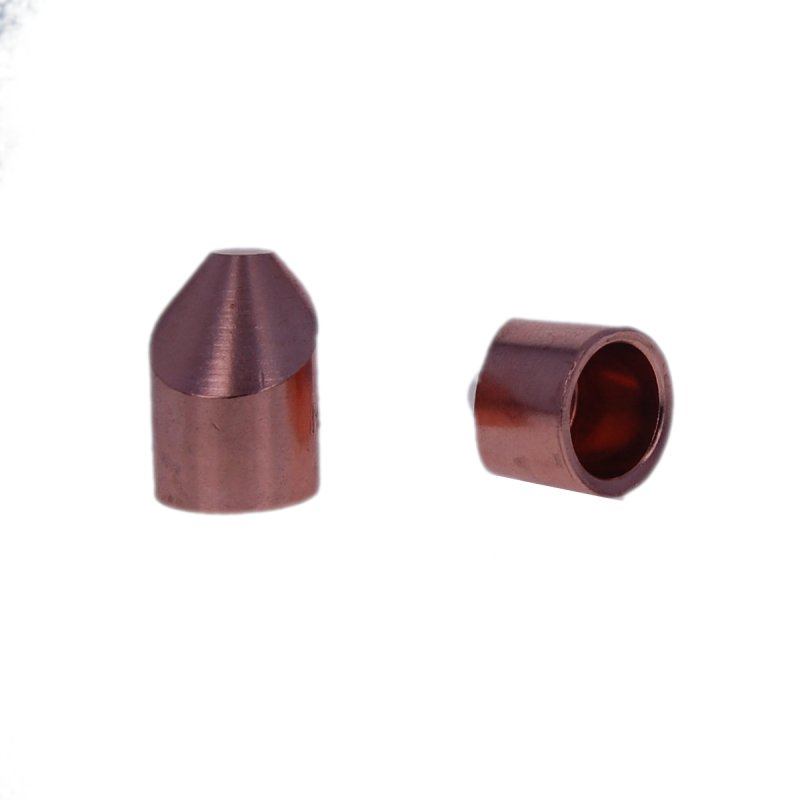

Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

  • The overall length is 20.0000 MM
  • The outside diameter is 16.000 MM
  • The part mounts via a 1:10 Metric-ISO 5821 type taper which is the standard in Europe.
  • The D nose or Offest face tip is used for welds in tight spaces typically on a flange or tight corner. It reqiures manual orientation during setup.
  • The weld face is 6 MM


RWMA Material Type RWMA Class 2 - C18150
RWMA Taper [T] 1:10
Nose Type D
Overall Length [A] 20.00000
Outer Diameter [B] 16.00000
Welding Face Dia. [C] 6
Unit of Measure MM
Offset / Truncated Angle [D] 30.0
