Single Bend Electrodes

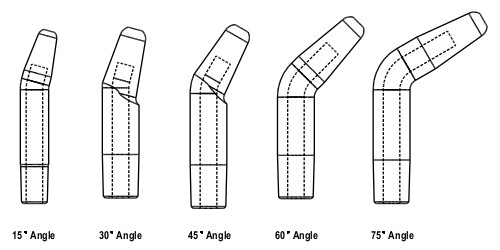

CMW Single Bend Electrodes

Standard Single Bend tips are an economic solution to weld in a tight area or hard to reach area such as a flange or corner.

For spot welding, it is critical that the tips meet in a straight line manner to prevent expulsion, most single bend electrodes are used in conjunction with an Angled Electrode Adapter or Angled Offset Holder.

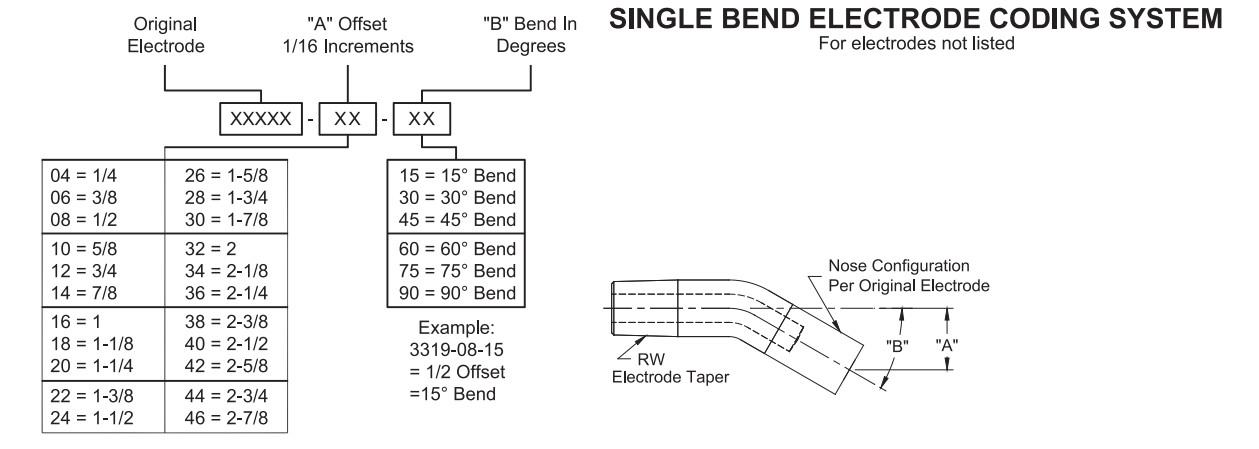

CMW Single Bend Coding System

PartDescription RWMA Material Type RWMA Taper [T] Nose Type Overall Length [A] Outer Diameter [B] Welding Face Dia. [C] Offset [H] Water Hole Dia. [E] Nose Length Unit of Measure Bend Angle (Deg) [D]
267-32112-12-45
32112-12-45 CMW RWMA Class 2 - C18200 4RW A 2.87500 0.48200 0.188 0.7500 0.28100 0.7500 IN 45.0
267-32116-23-60
32116-23-60 CMW RWMA Class 2 - C18200 4RW A 3.00000 0.48200 0.188 1.4380 0.28100 IN 60.0
267-32118-13-15
32118-13-15 CMW RWMA Class 2 - C18200 4RW A 3.87500 0.48200 0.188 0.8130 0.28100 IN 15.0
267-32118-23-30
32118-23-30 CMW RWMA Class 2 - C18200 4RW A 3.62500 0.48200 0.188 1.4380 0.28100 0.7500 IN 30.0
267-32118-33-45
32118-33-45 CMW RWMA Class 2 - C18200 4RW A 3.12500 0.48200 0.188 2.0630 0.28100 0.7500 IN 45.0
267-32118-40-60
32118-40-60 CMW RWMA Class 2 - C18200 4RW A 2.62500 0.48200 0.188 2.5000 3.50000 0.7500 IN 60.0
267-3215-07-30
3215-07-30 CMW RWMA Class 2 - C18200 4RW A 1.87500 0.48200 0.188 0.4380 0.28100 0.7500 IN 30.0
267-3215-10-45
3215-10-45 CMW RWMA Class 2 - C18200 4RW A 1.68800 0.48200 0.188 0.6250 0.28100 0.7500 IN 45.0
267-3218-23-60
3218-23-60 CMW RWMA Class 2 - C18200 4RW A 2.00000 0.48200 0.188 1.4380 0.28100 0.7500 IN 60.0
267-3219-04-15
3219-04-15 CMW RWMA Class 2 - C18200 4RW A 2.93800 0.48200 0.188 0.2500 0.28100 0.7500 IN 15.0
267-3219-07-30
3219-07-30 CMW RWMA Class 2 - C18200 4RW A 2.87500 0.48200 0.188 0.4380 0.28100 0.7500 IN 30.0
267-32212-09-30
32212-09-30 CMW RWMA Class 2 - C18200 5RW A 3.06300 0.62500 0.25 0.5630 0.37500 1.1250 IN 30.0
267-32212-25-60
32212-25-60 CMW RWMA Class 2 - C18200 5RW A 2.37500 0.62500 0.25 1.5630 0.37500 1.1250 IN 60.0
267-32214-17-45
32214-17-45 CMW RWMA Class 2 - C18200 5RW A 3.00000 0.62500 0.25 1.0630 0.37500 1.1250 IN 45.0
267-32216-35-75
32216-35-75 CMW RWMA Class 2 - C18200 5RW A 2.31300 0.62500 0.25 2.1880 0.37500 1.1250 IN 75.0
267-32218-10-15
32218-10-15 CMW RWMA Class 2 - C18200 5RW A 3.81300 0.62500 0.25 0.6250 0.37500 1.1250 IN 15.0
267-32218-25-60
32218-25-60 CMW RWMA Class 2 - C18200 5RW A 3.12500 0.62500 0.25 1.5630 0.37500 1.1250 IN 60.0
267-32220-24-30
32220-24-30 CMW RWMA Class 2 - C18200 5RW A 3.81300 0.62500 0.25 1.5000 0.37500 1.1250 IN 30.0
267-32220-33-45
32220-33-45 CMW RWMA Class 2 - C18200 5RW A 3.37500 0.62500 0.25 2.0630 0.37500 1.1250 IN 45.0
267-32220-37-75
32220-37-75 CMW RWMA Class 2 - C18200 5RW A 2.68800 0.62500 0.25 2.3130 0.37500 1.1250 IN 75.0
267-32220-38-60
32220-38-60 CMW RWMA Class 2 - C18200 5RW A 3.00000 0.62500 0.25 2.3750 0.37500 1.1250 IN 60.0
267-32220-43-75
32220-43-75 CMW RWMA Class 2 - C18200 5RW A 2.37500 0.62500 0.25 2.6880 0.37500 1.1250 IN 75.0
267-3225-04-15
3225-04-15 CMW RWMA Class 2 - C18200 5RW A 1.87500 0.62500 0.25 0.2500 0.37500 1.1250 IN 15.0
267-3226-09-30
3226-09-30 CMW RWMA Class 2 - C18200 5RW A 2.06300 0.62500 0.25 0.5630 0.37500 1.1250 IN 30.0
267-3228-17-45
3228-17-45 CMW RWMA Class 2 - C18200 5RW A 2.25000 0.62500 0.25 1.0630 0.37500 1.1250 IN 45.0
267-3229-04-15
3229-04-15 CMW RWMA Class 2 - C18200 5RW A 2.87500 0.62500 0.25 0.2500 0.37500 1.1250 IN 15.0
