32218-25-60 CMW

Part #: 267-32218-25-60

Request 3D Model

Request 3D Model

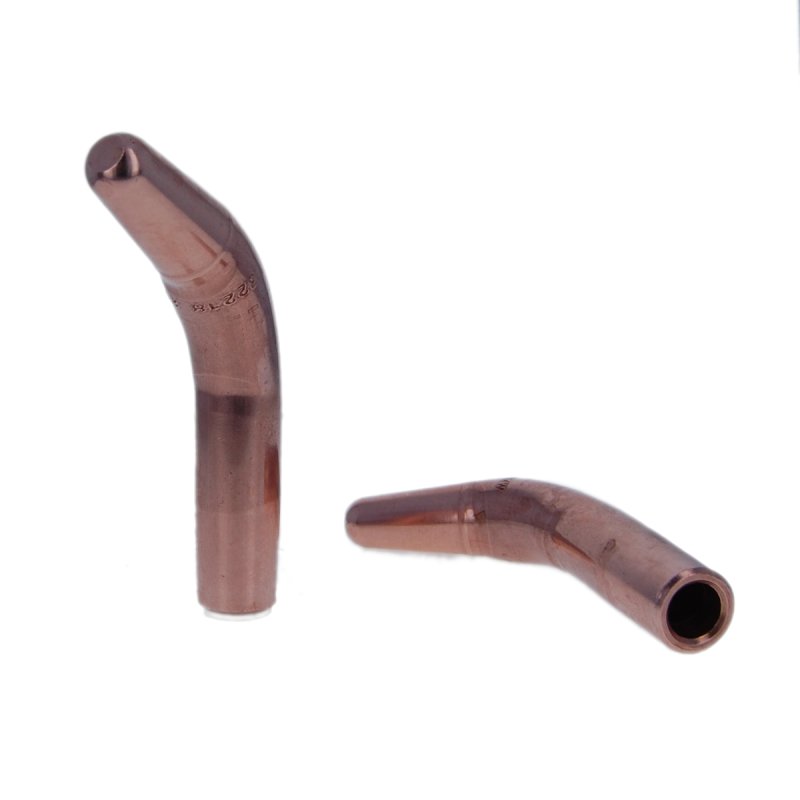

Standard Single Bend tips are an economic solution to weld in a tight area or hard to reach area such as a flange or corner.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 3.125 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
  • The weld face is 0.25 IN
  • The offset is 1.563 IN
  • The engagement angle is 60 Degrees

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper [T] 5RW
Nose Type A
Overall Length [A] 3.12500
Outer Diameter [B] 0.62500
Welding Face Dia. [C] 0.25
Offset [H] 1.5630
Water Hole Dia. [E] 0.37500
Nose Length 1.1250
Unit of Measure IN
Bend Angle (Deg) [D] 60.0
