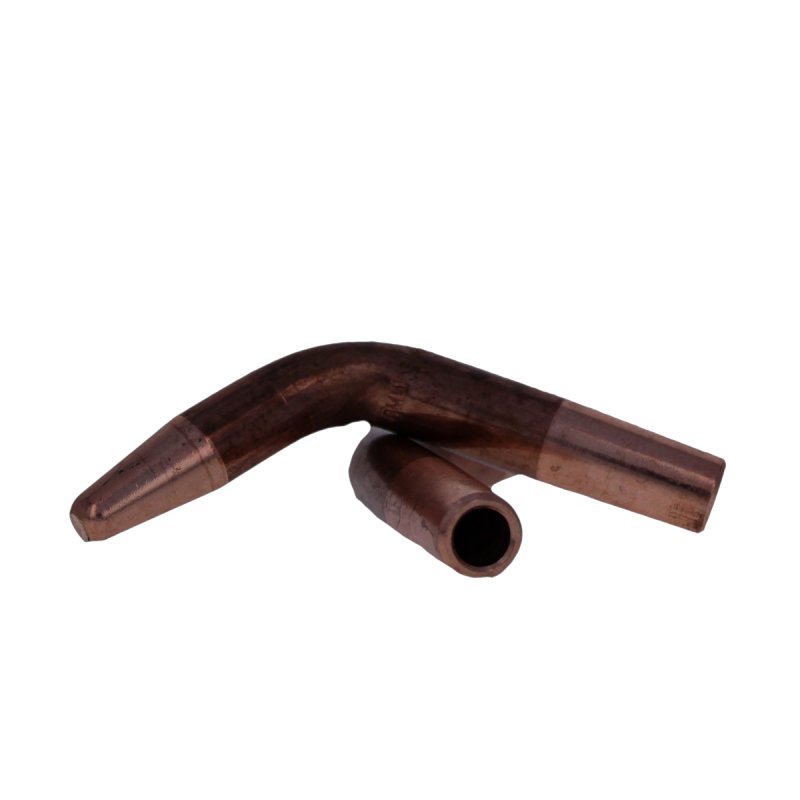

Standard Single Bend tips are an economic solution to weld in a tight area or hard to reach area such as a flange or corner.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 3.000 IN
  • The outside diameter is 0.482 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
  • The weld face is 0.188 IN
  • The offset is 1.438 IN
  • The engagement angle is 60 Degrees

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper [T] 4RW
Nose Type A
Overall Length [A] 3.00000
Outer Diameter [B] 0.48200
Welding Face Dia. [C] 0.188
Offset [H] 1.4380
Water Hole Dia. [E] 0.28100
Unit of Measure IN
Bend Angle (Deg) [D] 60.0
