3018 CMW

Part #: 261-3018

Request 3D Model

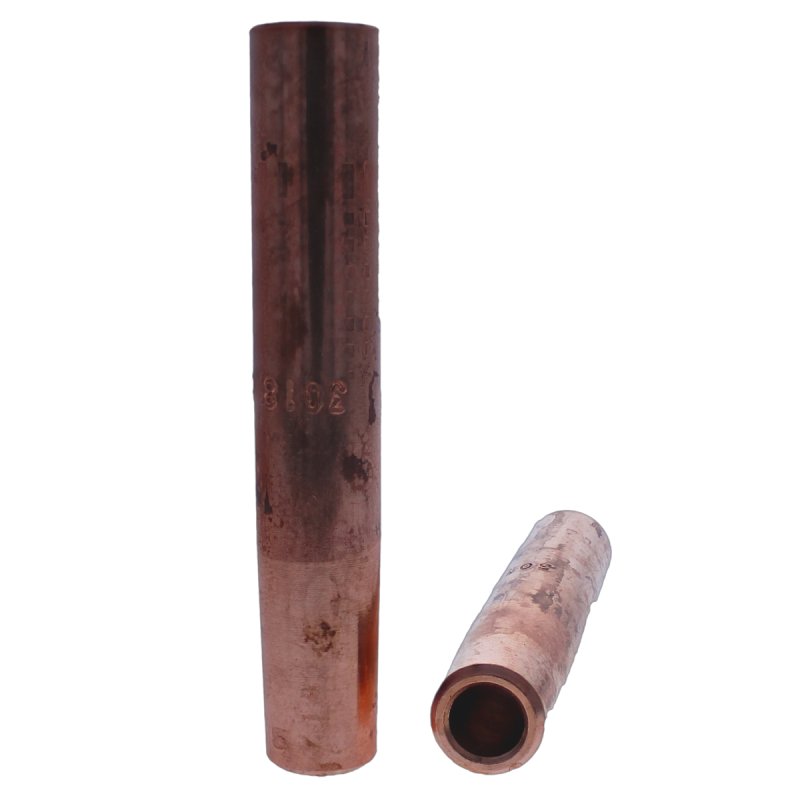

Straight shanks for male caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine. The shank has a water hole through the entire part to ensure the cap is properly cooled.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.75 IN
The outside diameter is 0.482 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The part holds a subcomponent via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The assembled length is 3.38 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Base Taper [T]	4RW
RWMA Cap Taper [M]	4RW Cap Taper
Overall Length [A]	2.75000
Outer Diameter	0.48200
Inner Diameter	0.28100
Assembled Length [B]	3.0000
Unit of Measure	IN
