Straight Shanks for Male Cap

CMW Straight Shanks for Male Caps

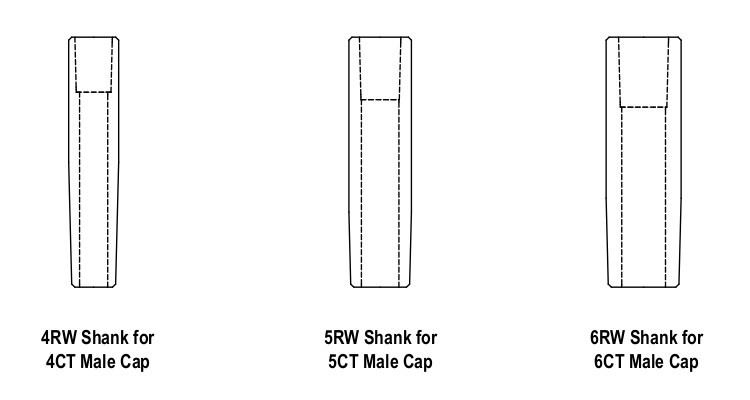

Straight Shanks for Male Caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine. The shank has a water hole through the entire part to ensure the cap is properly cooled.

The combination of shanks and caps are an economical way to reduce the tooling cost for an application because a cap tip is cheaper than a standard straight or double bend electrode.

It is recommended that a standard or double bend electrode is selected when spot welding heavily coated metals such as galvanized or tin-plate.

PartDescription RWMA Material Type RWMA Base Taper [T] RWMA Cap Taper [M] Overall Length [A] Outer Diameter Inner Diameter Assembled Length [B] Unit of Measure
261-30112
30112 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.25000 0.48200 0.28100 3.5000 IN
261-30114
30114 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.50000 0.48200 0.28100 3.7500 IN
261-30116
30116 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.75000 0.48200 0.28100 4.0000 IN
261-30118
30118 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 4.00000 0.48200 0.28100 4.2500 IN
261-3012
3012 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.25000 0.48200 0.28100 1.5000 IN
261-3013
3013 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.50000 0.48200 0.28100 1.7500 IN
261-3014
3014 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.75000 0.48200 0.28100 2.0000 IN
261-3015
3015 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.00000 0.48200 0.28100 2.2500 IN
261-3016
3016 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.25000 0.48200 0.28100 2.5000 IN
261-3017
3017 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.50000 0.48200 0.28100 2.7500 IN
261-3018
3018 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.75000 0.48200 0.28100 3.0000 IN
261-3019
3019 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.00000 0.48200 0.28100 3.2500 IN
261-30212
30212 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.21000 0.62500 0.37500 3.5000 IN
261-30214
30214 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.46000 0.62500 0.37500 3.7500 IN
261-30216
30216 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.71000 0.62500 0.37500 4.0000 IN
261-30218
30218 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.96000 0.62500 0.37500 4.2500 IN
261-3022
3022 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.21000 0.62500 0.37500 1.5000 IN
261-30220
30220 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 4.21000 0.62500 0.37500 4.5000 IN
261-30222
30222 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 4.46000 0.62500 0.37500 4.7500 IN
261-3023
3023 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.46000 0.62500 0.37500 1.7500 IN
261-3024
3024 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.71000 0.62500 0.37500 2.0000 IN
261-3025
3025 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.96000 0.62500 0.37500 2.2500 IN
261-3026
3026 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.21000 0.62500 0.37500 2.5000 IN
261-3027
3027 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.46000 0.62500 2.7500 IN
261-3028
3028 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.71000 0.62500 0.37500 3.0000 IN
261-3029
3029 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.96000 0.62500 0.37500 3.2500 IN
261-30412
30412 CMW RWMA Class 2 - C18200 6RW 6RW Cap Taper 3.14000 0.75000 0.43800 3.5000 IN
261-30414
30414 CMW RWMA Class 2 - C18200 6RW 6RW Cap Taper 3.39000 0.75000 4.38000 3.7500 IN
261-3043
3043 CMW RWMA Class 2 - C18200 6RW 6RW Cap Taper 1.39000 0.75000 0.43800 1.7500 IN
261-3045
3045 CMW RWMA Class 2 - C18200 6RW 6RW Cap Taper 1.89000 0.75000 0.43800 2.2500 IN
261-3046
3046 CMW RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.14000 0.75000 0.43800 2.5000 IN
261-3047
3047 CMW RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.39000 0.75000 0.43800 2.7500 IN
261-3049
3049 CMW RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.89000 0.75000 0.43800 3.2500 IN
