• MPD15Z CMW
  • Sketch for MPD15Z CMW

MPD15Z CMW

Part #: 2-MPD15Z

Request 3D Model

Request 3D Model

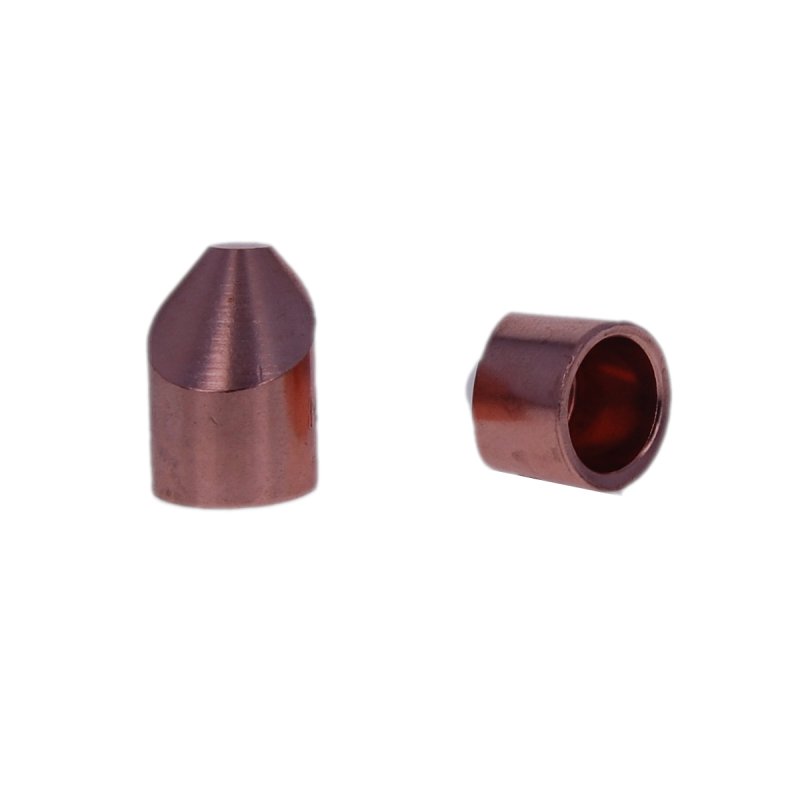

Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

  • The overall length is 0.8800 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The D nose or Offest face tip is used for welds in tight spaces typically on a flange or tight corner. It reqiures manual orientation during setup.
  • The weld face is 0.25 IN

Specifications

RWMA Material Type RWMA Class 1 - C15000
RWMA Taper [T] 5RW Cap Taper
Nose Type D
Overall Length [A] 0.88000
Outer Diameter [B] 0.62500
Welding Face Dia. [C] 0.25
Unit of Measure IN
Offset / Truncated Angle [D] 40.0
