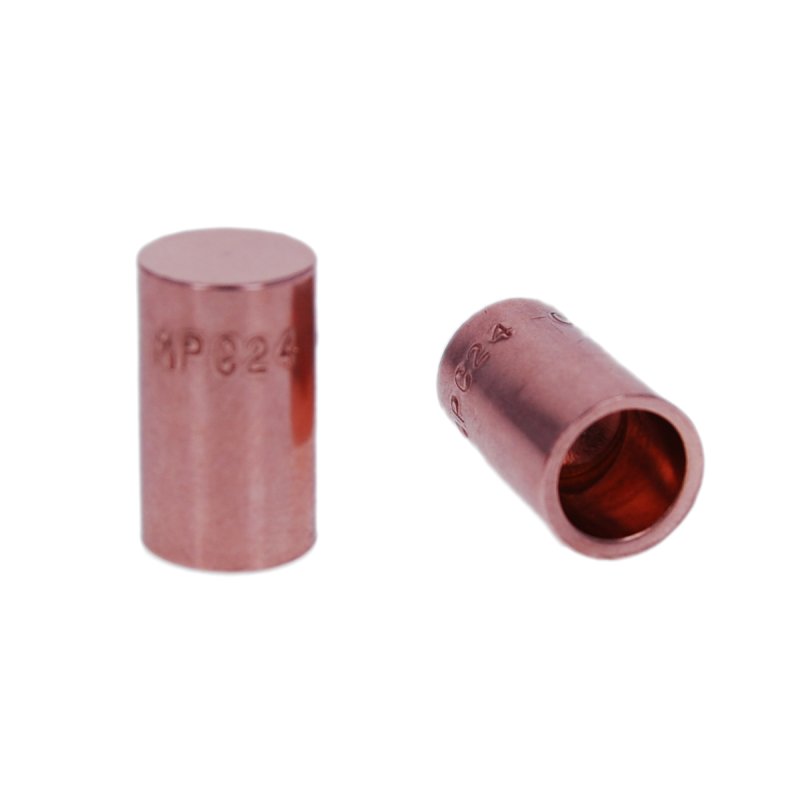

Part #: 2-MPC24
Request 3D Model
Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 0.8400 IN
- The outside diameter is 0.500 IN
- The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
- The weld face is 0.5 IN
|RWMA Material Type||RWMA Class 2 - C18200|
|RWMA Taper [T]||4RW Cap Taper|
|Overall Length [A]||0.84000|
|Outer Diameter [B]||0.50000|
|Welding Face Dia. [C]||0.5|
|Unit of Measure||IN|
