• 30112-12  CMW
  • Sketch for 30112-12  CMW

30112-12 CMW

Part #: 262-30112-12

Request 3D Model

Request 3D Model

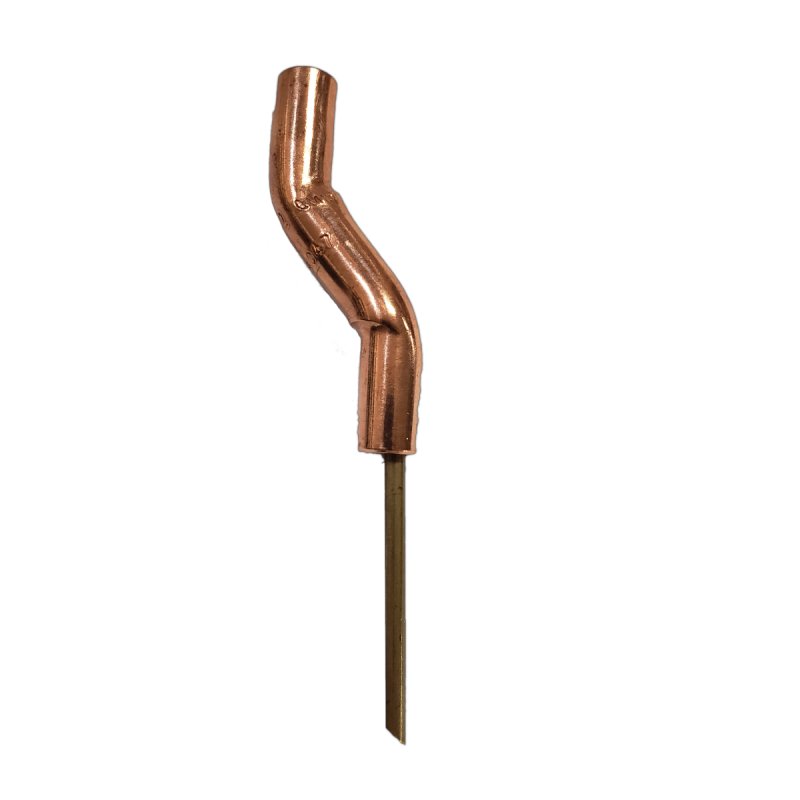

Bent Shanks for Male Caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine where an offset is required. The shank has a water hole through the entire part to ensure the cap is properly cooled.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.81 IN
  • The outside diameter is 0.482 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The part holds a subcomponent via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The assembled length is 3.56 IN
  • The offset is 0.75 IN
  • The part includes a water tube for cooling

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Base Taper [T] 4RW
RWMA Cap Taper [M] 4RW Cap Taper
Overall Length [A] 2.81000
Outer Diameter 0.48200
Offset [C] 0.7500
Inner Diameter 0.28100
Assembled Length [B] 3.5600
Unit of Measure IN
Tube Yes
