Bent Shanks for Male Caps

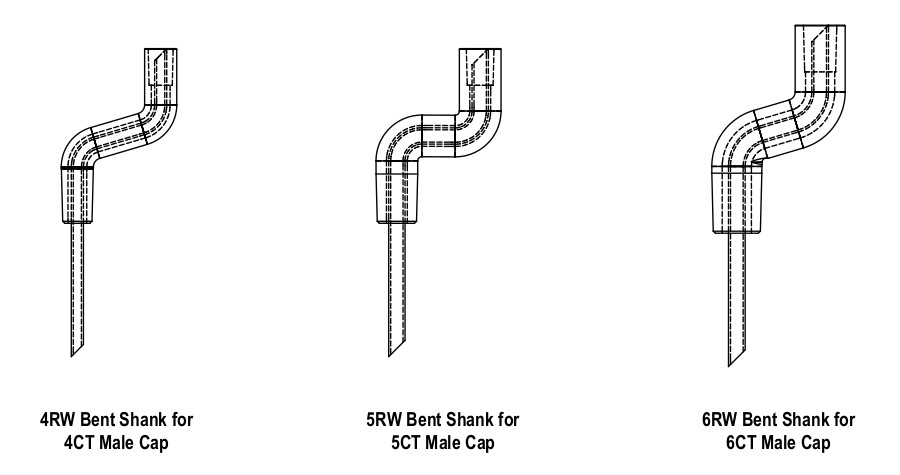

CMW Bent Shank for Male Caps

Bent Shanks for Male Caps are a cost effective way to utilize male caps on any standard rocker arm, press type, robot or bench mounted machine where an offset is required. The dobule bend profile allows the user to weld in tight spaces or around obstrucitons.

The combination of shanks and caps are an economical way to reduce the tooling cost for an application because a cap tip is cheaper than a standard straight or double bend electrode.

It is recommended that a standard straight or double bend electrode is selected when spot welding heavily coated metals such as galvanized or tin-plate.

PartDescription RWMA Material Type RWMA Base Taper [T] RWMA Cap Taper [M] Overall Length [A] Outer Diameter Offset [C] Inner Diameter Assembled Length [B] Unit of Measure Tube
262-30112-12
30112-12 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.81000 0.48200 0.7500 0.28100 3.5600 IN Yes
262-30112-16
30112-16 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.37000 0.48200 1.0000 0.28100 3.1200 IN Yes
262-30116-16
30116-16 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.87000 0.48200 1.0000 0.28100 3.6200 IN Yes
262-30116-20
30116-20 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.62000 0.48200 1.2500 0.28100 3.3700 IN Yes
262-3019-08
3019-08 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.62000 0.48200 0.5000 0.28100 3.3700 IN Yes
262-3019-12
3019-12 CMW RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.56000 0.48200 0.7500 0.28100 3.3100 IN Yes
262-30212-12
30212-12 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.81000 0.62500 0.7500 0.37500 3.5600 IN Yes
262-30212-16
30212-16 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.37000 0.62500 1.0000 0.37500 3.1200 IN Yes
262-30214-12
30214-12 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.06000 0.62500 0.7500 0.37500 3.8100 IN Yes
262-30214-16
30214-16 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.62000 0.62500 1.0000 0.37500 3.3700 IN Yes
262-30214-20
30214-20 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.37000 0.62500 1.2500 0.37500 3.1200 IN Yes
262-30216-16
30216-16 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.87000 0.62500 1.0000 0.37500 3.6200 IN Yes
262-30216-20
30216-20 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.62000 0.62500 1.2500 0.37500 3.3700 IN Yes
262-3028-08
3028-08 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.37000 0.62500 0.5000 0.37500 3.1200 IN Yes
262-3028-12
3028-12 CMW RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.31000 0.62500 0.7500 0.37500 3.0600 IN Yes
262-30412-08
30412-08 CMW RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.62000 0.75000 0.5000 0.43800 3.7500 IN Yes
262-30416-16
30416-16 CMW RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.87000 0.75000 1.0000 0.43800 4.0000 IN Yes
