18-605 CMW

Part #: 235-18-605

Request 3D Model

The 600 Series Universal Holder Assembly is a water cooled electrode holder assembly for rocker arm welders. The assembly includes a Tee-Connector, Straight Holder, Water Connector Head, and an Electrode Adapter. The system provides the necessary components to make any welder more versatile.

The barrel holder length is 8.000 IN
The barrel holder diameter is 1.250 IN
The mounting shank diameter of the Tee Connector is 1.25 IN
The part holds a subcomponent via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The Tee Connector shank length is 4 IN
The engagement angle is 90 Degrees

Specifications

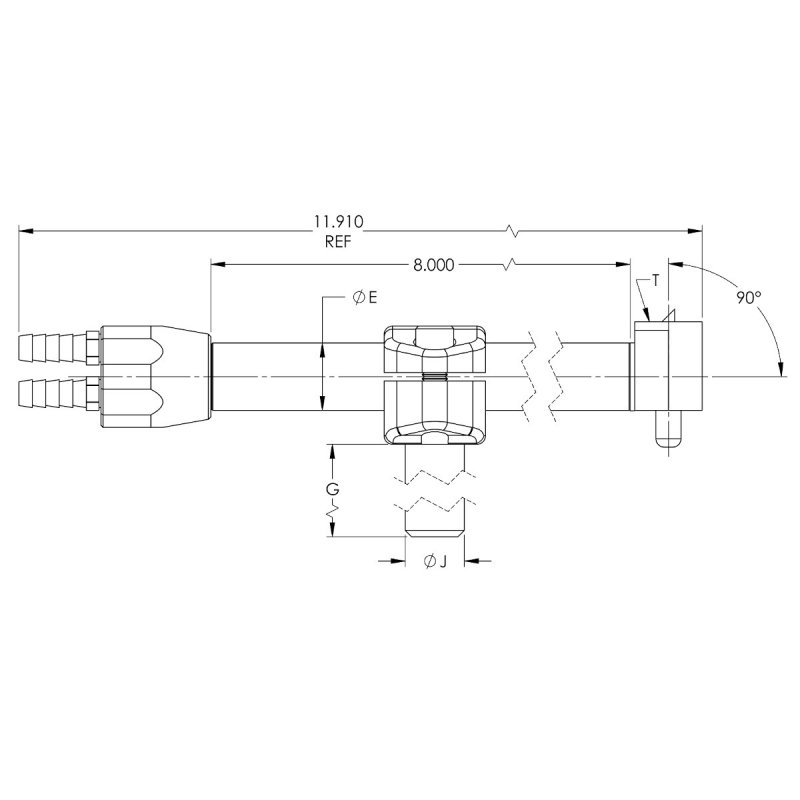

Tee Connector Shaft Dia. [J]	1.25
RWMA Taper [T]	4RW
Barrel Length	8.00000
Barrel Dia. [E]	1.25000
Tee Connector Shank Length [G]	3.500
Unit of Measure	IN
Adapter Engagement Angle	90.0
Ejector Type	Yes
Adapter Threads	7/8 - 14
Adapter Included	290-18-764
