18-729 CMW

Part #: 292-18-729

Request 3D Model

Request 3D Model

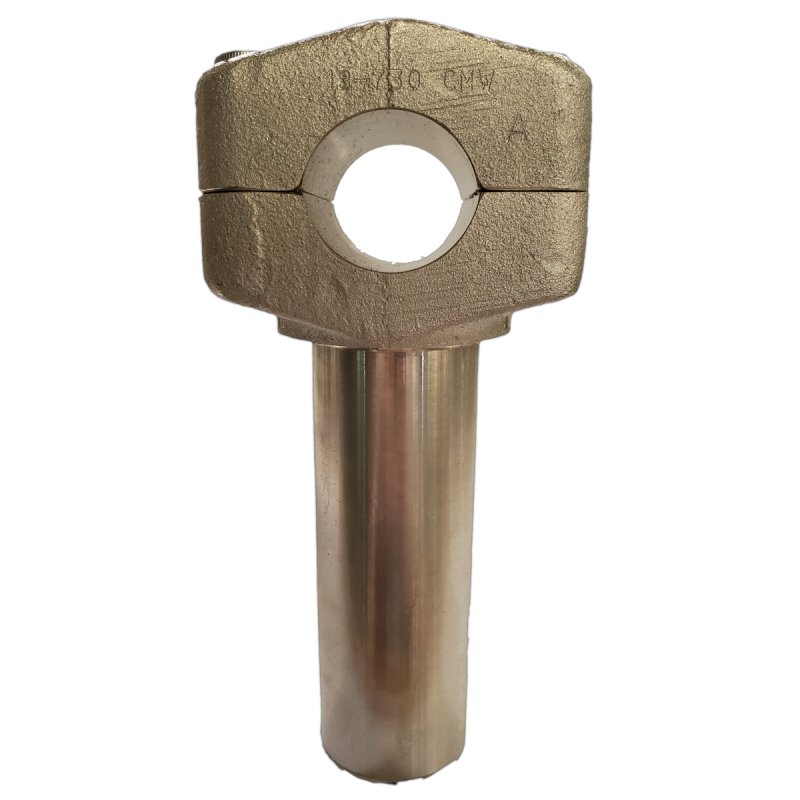

Tee Connectors are a structural component designed to hold Straight Holders or Paddle Holders. This allows users to configure the tooling of a Rocker Arm or Pedestal welder to the geometry of the weld.

RMWA Class 3 material is high strength copper alloy recommended for structural secondary components and electrode holders subjected to high forces. This is a heat treatable alloy used in the fully heat treated condition.

  • The mounting shank length is 4.0 IN
  • The width of the head is 2.00 IN
  • The mounting shank diameter is 1.5 IN
  • The Tee Connector hole diameter is 1.5 IN
  • The part is nickel plated to protect against corrosion.

Specifications

RWMA Material Type RWMA Class 3
Shank Diameter 1.5
Hole Diameter 1.5
Overall Length 6.31300
Width of Clamp Body (Standard) 2.00000
Shank Length 4.000
Unit of Measure IN
Engagement Angle 90.0
Nickel Plated Yes
