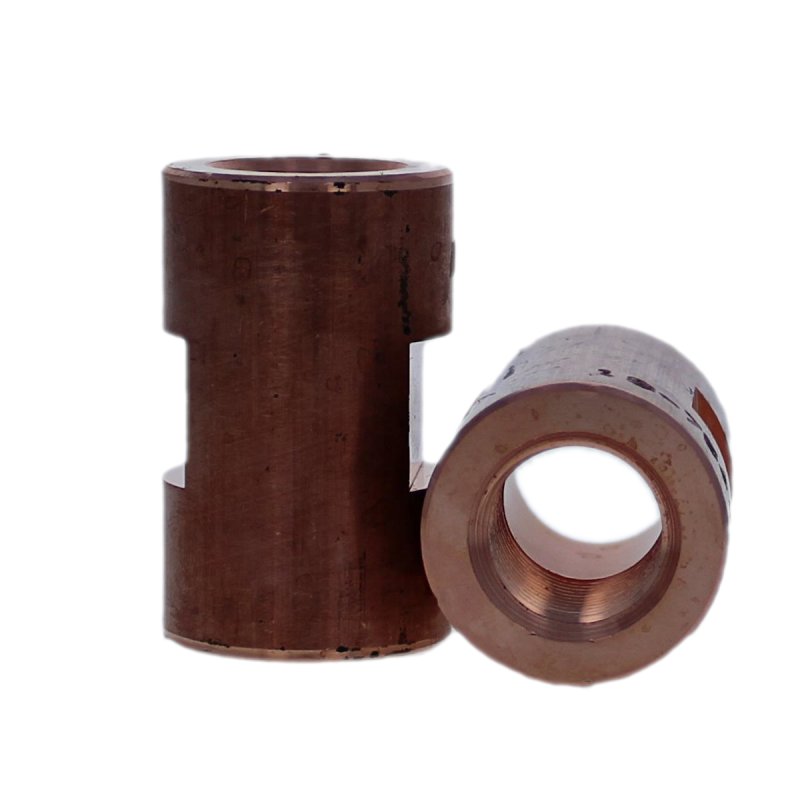

18-754 CMW

Part #: 290-18-754

Request 3D Model

Request 3D Model

Electrode Adapters are used to improve electrode holder life and flexibility by allowing the adapter to be replaced when the taper wears out.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 1.625 IN
  • The part mounts via 5/8 - 18 threads.
  • The part holds a subcomponent via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The taper or thread length is 0.750 IN


RWMA Material Type RWMA Class 2
Engagement to Holder 5/8 - 18
RWMA Taper 5RW
Overall Length 1.62500
Hex Width 1.00000
Thread Length 0.7500
Body Length 0.5625
Unit of Measure IN
Thread Type Female
