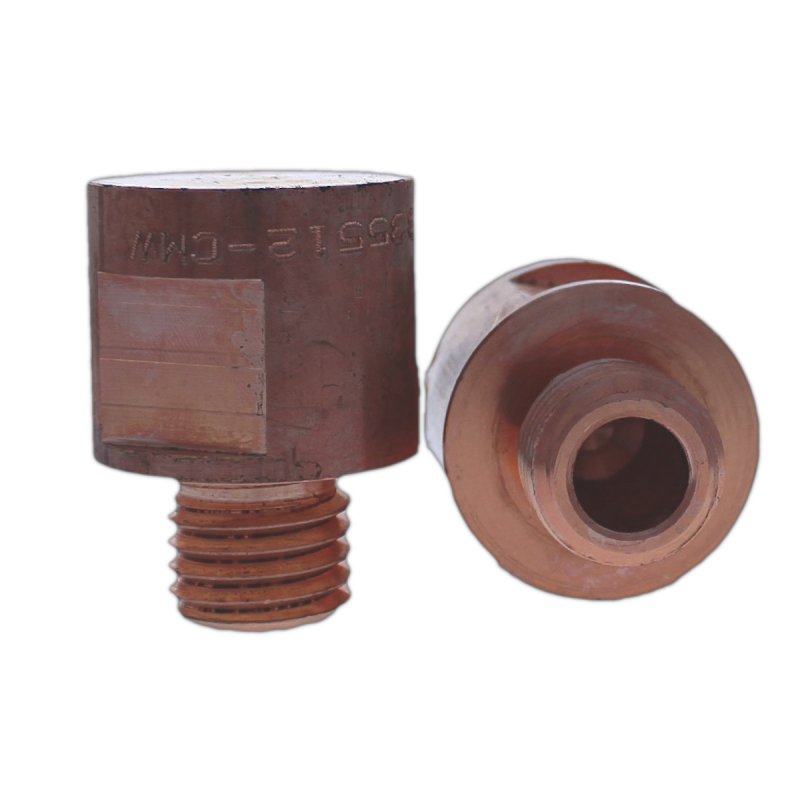

335512 CMW

Part #: 287-335512

Request 3D Model

Threaded tips have a low profile for welds where space is a premium. In addition, these electrodes can be used for welding at higher forces than parts with a standard RWMA taper.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.000 IN
The hex width is 1.500 IN
The part mounts to the holder via 7/8 - 9 Male threads.
The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
The weld face is 1.5 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
Nose Type	C
Overall Length	2.00000
Hex Size	1.50000
Welding Face Dia.	1.5
Water Hole Dia.	0.50000
Water Hole Depth	1.250
Thread Length	0.7500
Unit of Measure	IN
Thread Type	Male
