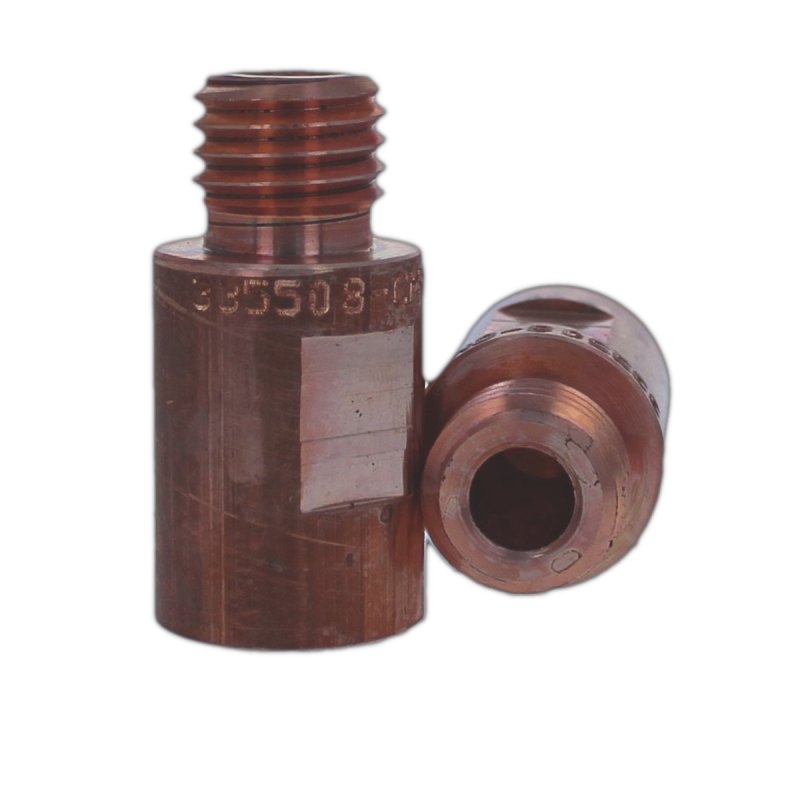

Part #: 287-335508
Request 3D Model
Threaded tips have a low profile for welds where space is a premium. In addition, these electrodes can be used for welding at higher forces than parts with a standard RWMA taper.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 2.000 IN
- The hex width is 1.000 IN
- The part mounts to the holder via 3/4 -10 Male threads.
- The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
- The weld face is 1 IN
|RWMA Material Type||RWMA Class 2 - C18200|
|Welding Face Dia.||1|
|Water Hole Dia.||0.37500|
|Water Hole Depth||1.250|
|Unit of Measure||IN|
