18-993 CMW

Part #: 270-18-993

Request 3D Model

Request 3D Model

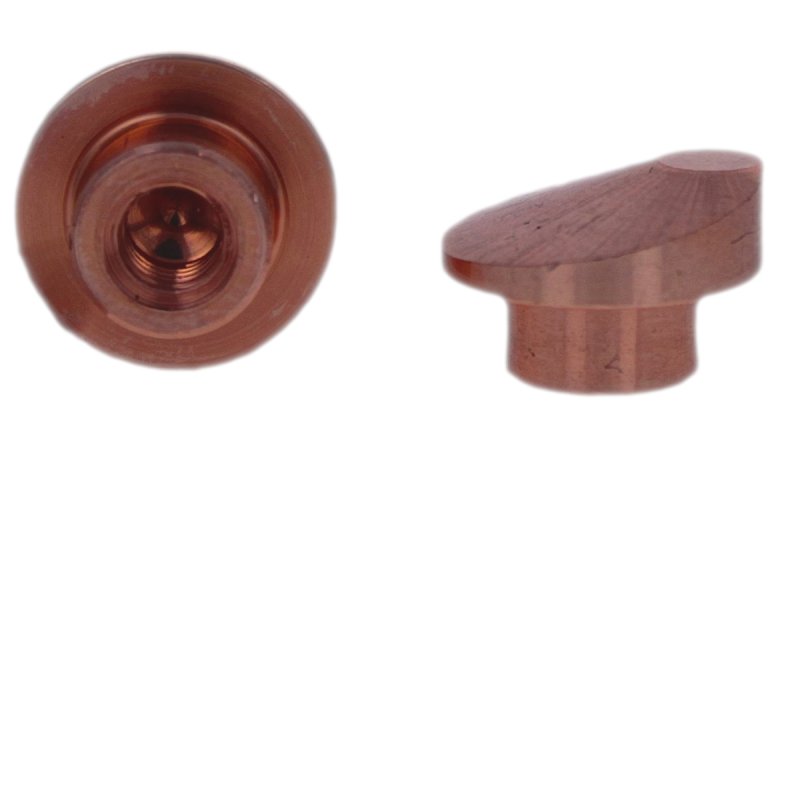

Threaded Socket Tips for are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances. The tips are designed for use with 900 and 950 Series Univeral Paddle Holders.

RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.

  • The overall length is 0.3750 IN
  • The outside diameter is 0.563 IN
  • A 10 - 32 Tap Hold Screw holds the tip in place
  • The D nose or Offest face tip is used for welds in tight spaces typically on a flange or tight corner. It reqiures manual orientation during setup.
  • The weld face is 0.188 IN

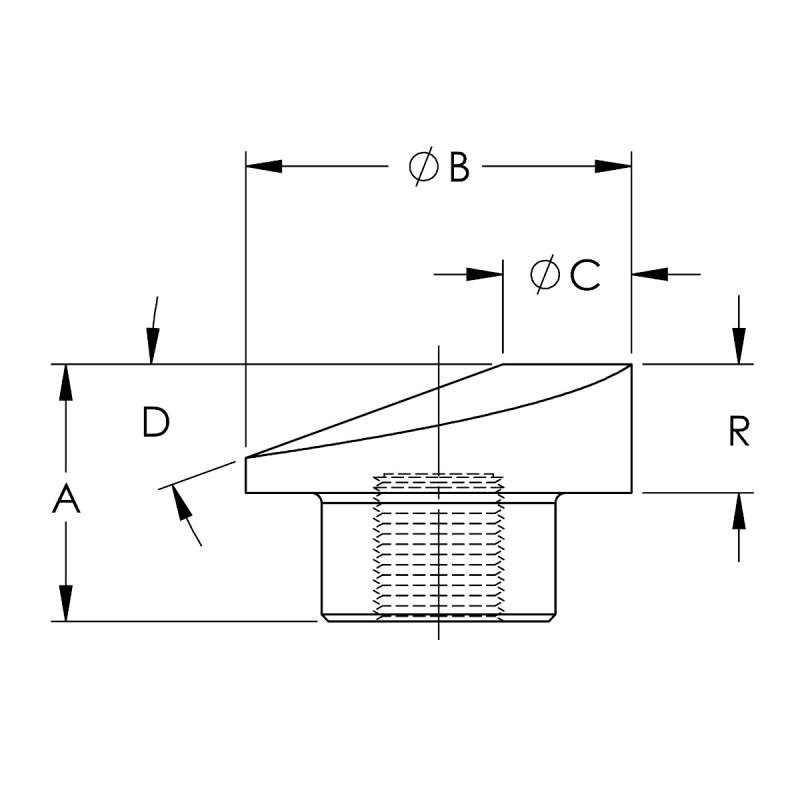

Specifications

RWMA Material Type RWMA Class 3 - C18000
Thread Size 10 - 32 Tap Hold Screw
Nose Type D
Overall Length 0.37500
Hex Size 0.56300
Welding Face Dia. 0.188
Overall Length 0.1875
Unit of Measure IN
Offset / Truncated Angle 20.0
