18-992 CMW

Part #: 270-18-992

Request 3D Model

Request 3D Model

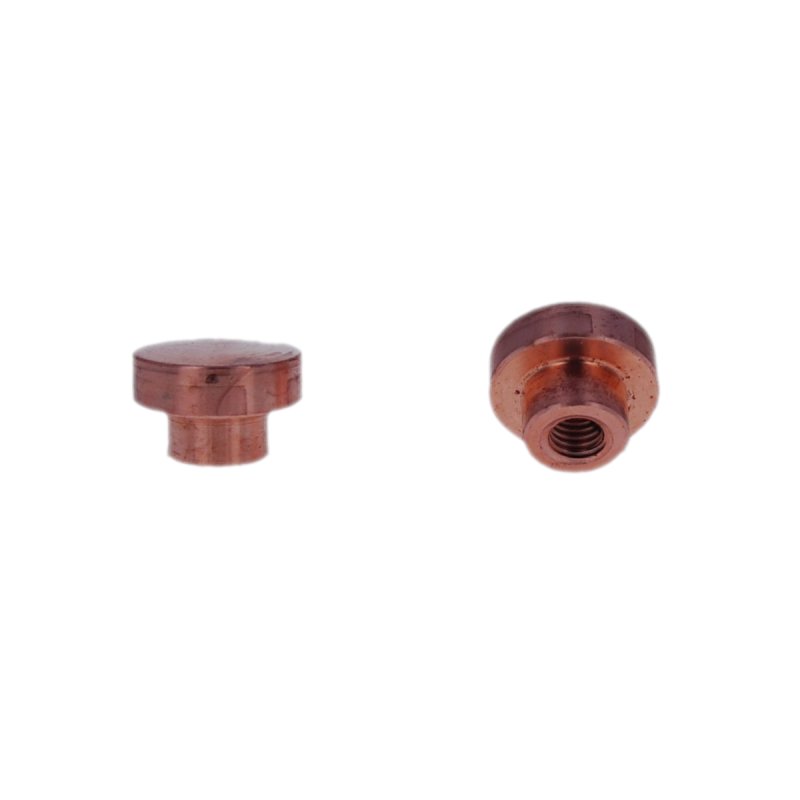

Threaded Socket Tips for are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances. The tips are designed for use with 900 and 950 Series Univeral Paddle Holders.

RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.

  • The overall length is 0.3750 IN
  • The outside diameter is 0.563 IN
  • A 10 - 32 Tap Hold Screw holds the tip in place
  • The F nose or Radius face tip is typically used for alumium welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.
  • The weld face is 2 IN Radius

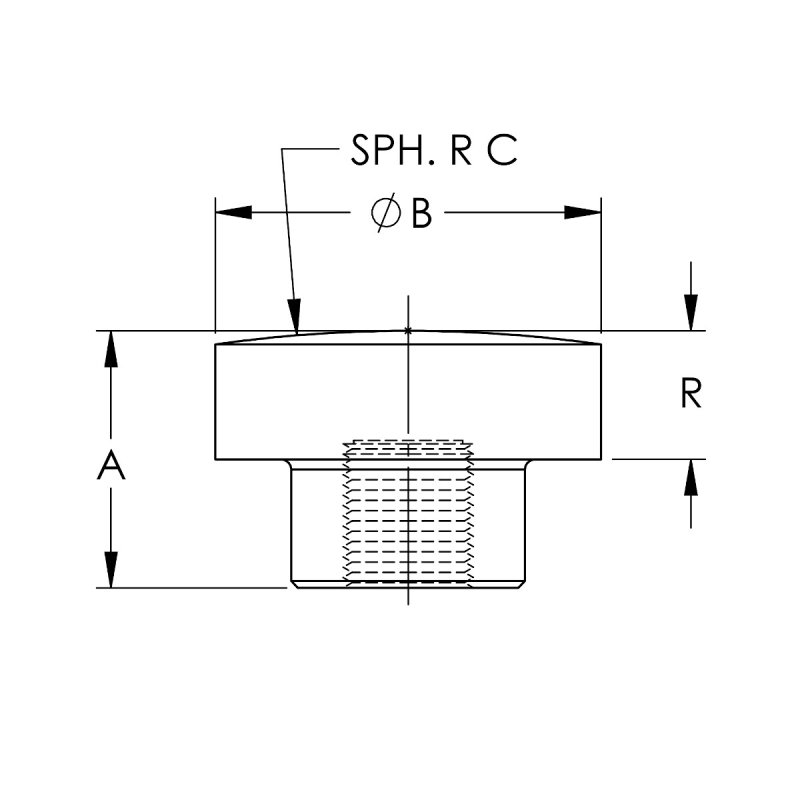

Specifications

RWMA Material Type RWMA Class 3 - C18000
Thread Size 10 - 32 Tap Hold Screw
Nose Type F
Overall Length 0.37500
Hex Size 0.56300
Welding Face Dia. 2 IN Radius
Overall Length 0.1875
Unit of Measure IN
