Part #: 270-18-991
Request 3D Model

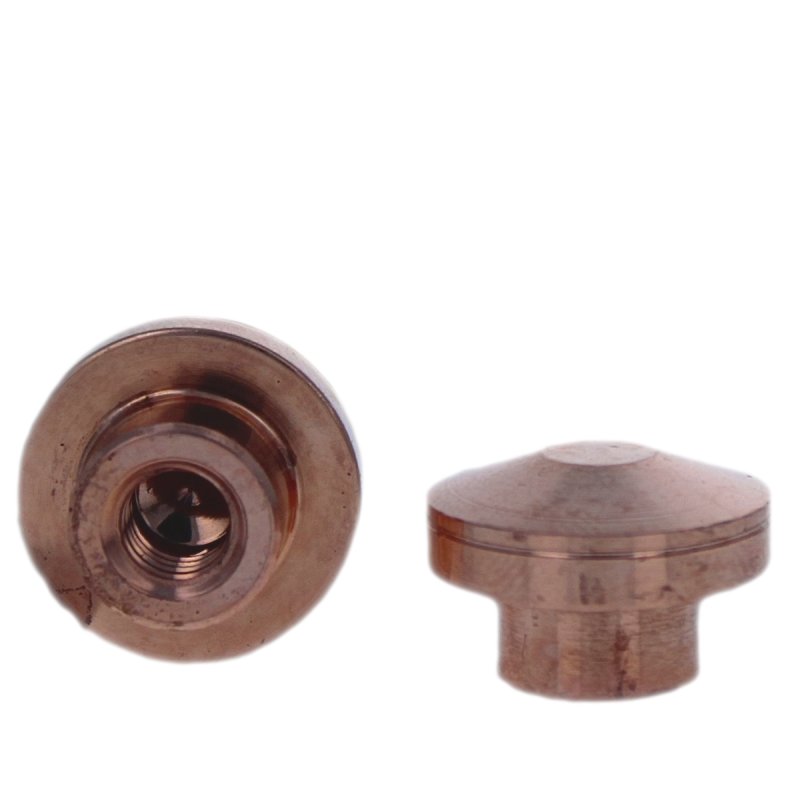

Threaded Socket Tips for are designed for welding in tight spaces. The low profile design allows users to weld in areas with minimal clearances. The tips are designed for use with 900 and 950 Series Univeral Paddle Holders.
RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.
- The overall length is 0.3750 IN
- The outside diameter is 0.563 IN
- A 10 - 32 Tap Hold Screw holds the tip in place
- The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.
- The weld face is 0.188 IN
|RWMA Material Type||RWMA Class 3 - C18000|
|Thread Size||10 - 32 Tap Hold Screw|
|Welding Face Dia.||0.188|
|Unit of Measure||IN|
|Offset / Truncated Angle||20.0|
