• 16-2302 CMW
  • Sketch for 16-2302 CMW

16-2302 CMW

Part #: 282-16-2302

Request 3D Model

Request 3D Model

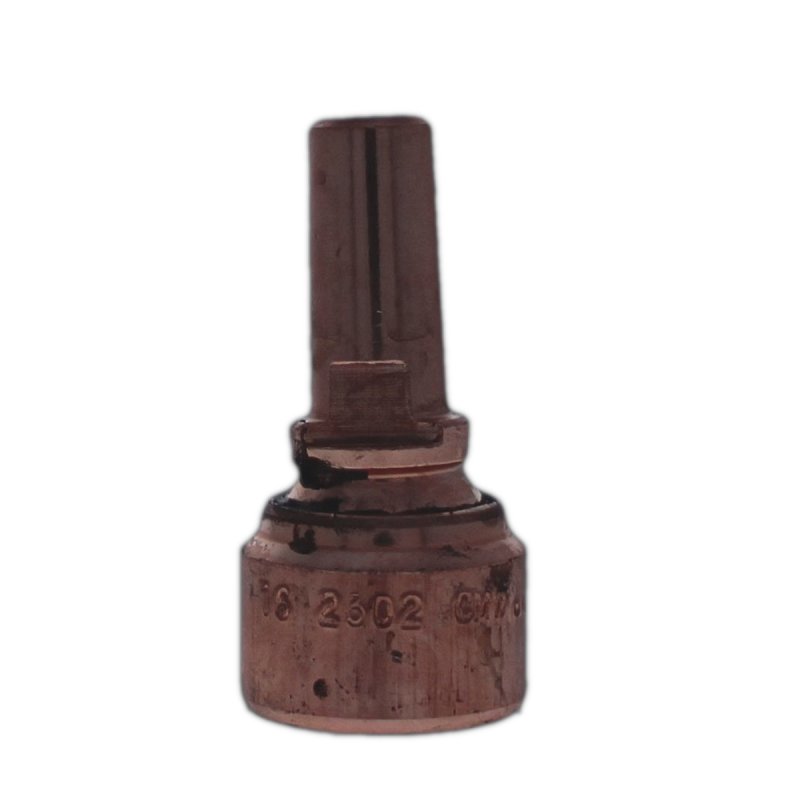

Swivel tips have a ball-jointed swivel head to compensate for misalignment, and to eliminate marking of the work surface for cosmetic welds.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.016 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The weld face is 1 IN
  • For better cooling of the weld face, water contacts the head and an o-ring is used to seal it

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper [T] 4RW
Overall Length [A] 2.01563
Welding Face Dia. [B] 1
Water Hole Dia. [E] 0.28125
Unit of Measure IN
O-ring Yes
