• 16-2496 CMW

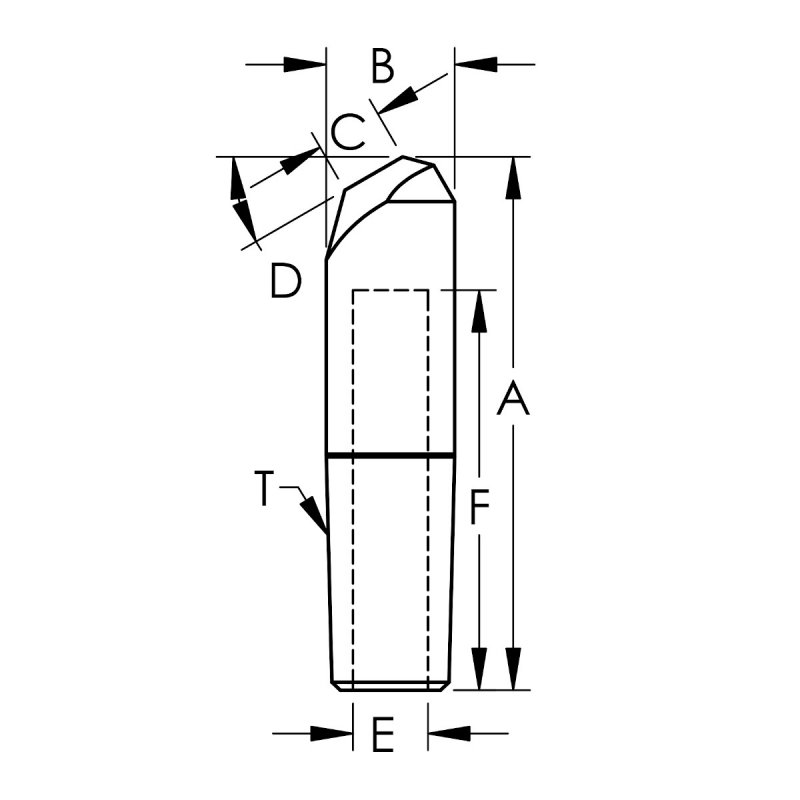

  • Sketch for 16-2496 CMW

16-2496 CMW

Part #: 245-16-2496

Request 3D Model

Request 3D Model

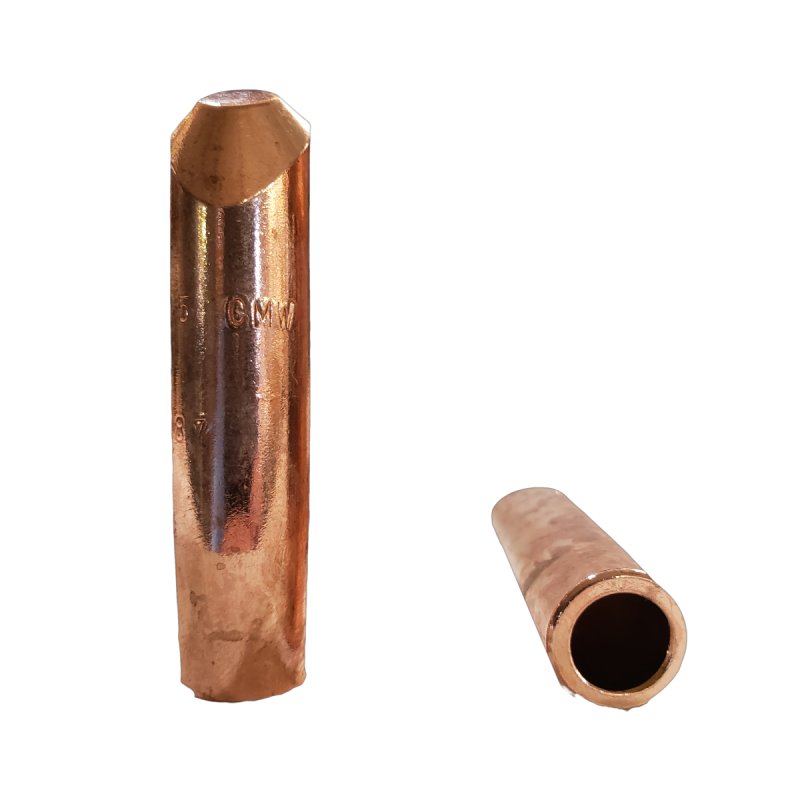

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 3.00 IN
  • The outside diameter is 0.875 IN
  • The part mounts via a 7RW standard taper which is suitable for weld forces ranging between 2,000 to 2,400 pounds of force.
  • The H nose or angled offset nose is designed to accommodate the angled offset the electrode holder and ensure the weldface is perpendicular to the workpieces.
  • The weld face is 0.500 IN
  • The engagement angle is 30 Degrees

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper [T] 7RW
Nose Type H
Overall Length [A] 3.00000
Outer Diameter [B] 0.87500
Welding Face Dia. [C] .500
Water Hole Dia. [E] 0.50000
Water Hole Depth [F] 2.250
Unit of Measure IN
Nose Engagement Angle [D] 30.0
