13212 CMW

Part #: 235-13212

Request 3D Model

Request 3D Model

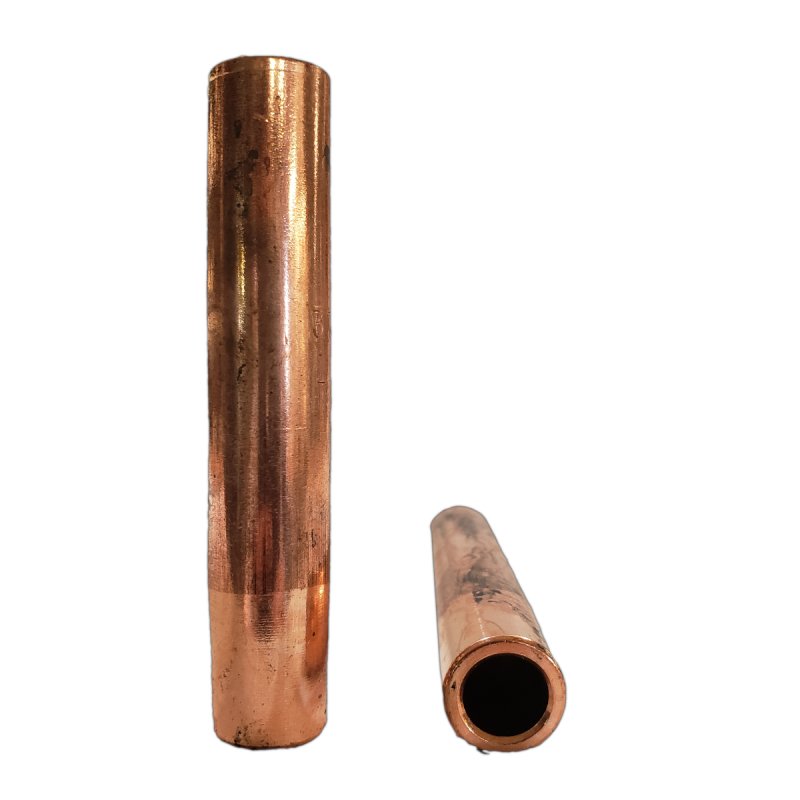

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

  • The overall length is 3.25 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.625 IN

Specifications

RWMA Material Type RWMA Class 1 - C15000
RWMA Taper [T] 5RW
Nose Type C
Overall Length [A] 3.25000
Outer Diameter [B] 0.62500
Welding Face Dia. [C] 0.625
Water Hole Dia. [E] 0.37500
Water Hole Depth [F] 2.500
Unit of Measure IN
