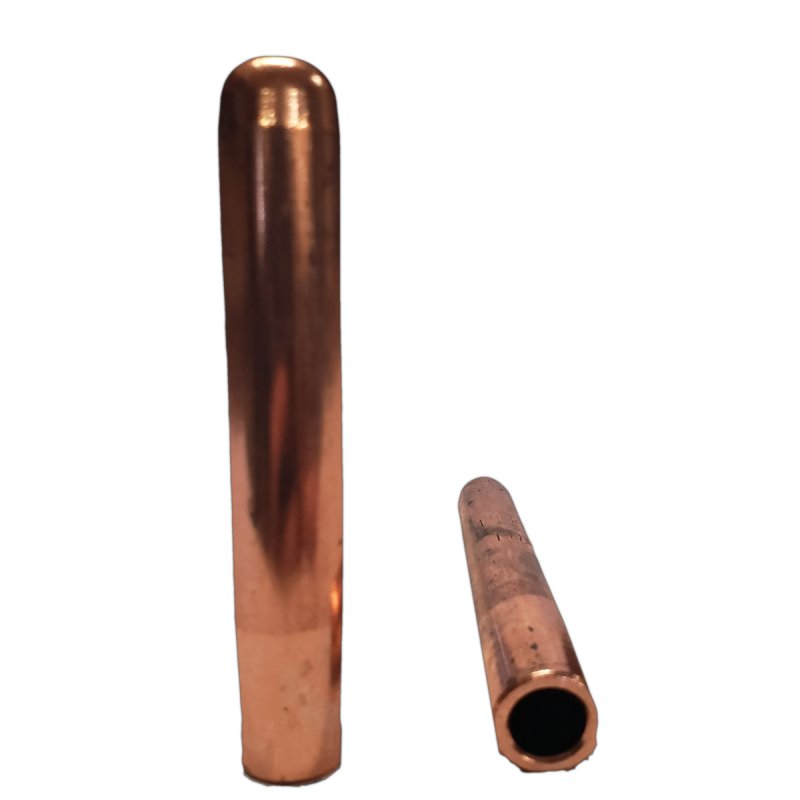

1117 CMW

Part #: 233-1117

Request 3D Model

Request 3D Model


Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

  • The overall length is 2.50 IN
  • The outside diameter is 0.482 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The B nose or Dome face tip is the most commonly used weldface because the design accomodates modest misalignment problems as contact can still be made on the radius during welding.
  • The weld face is 0.188 IN

Specifications

RWMA Material Type RWMA Class 1 - C15000
RWMA Taper [T] 4RW
Nose Type B
Overall Length [A] 2.50000
Outer Diameter [B] 0.48200
Welding Face Dia. [C] 0.188
Water Hole Dia. [E] 0.28100
Water Hole Depth [F] 2.000
Nose Length [G] 0.2500
Unit of Measure IN
