MP30220 CMW

Part #: 263-MP30220

Request 3D Model

Request 3D Model

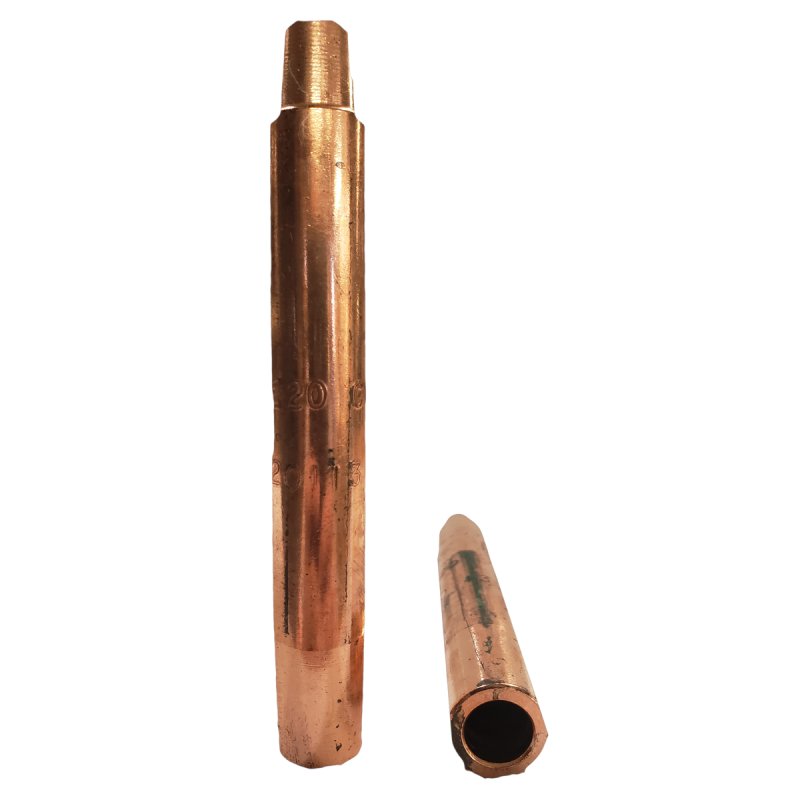

Straight shanks for female caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine. The shank has a water hole through the entire part to ensure the cap is properly cooled.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 4.21 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The part holds a subcomponent via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The assembled length is 4.75 IN

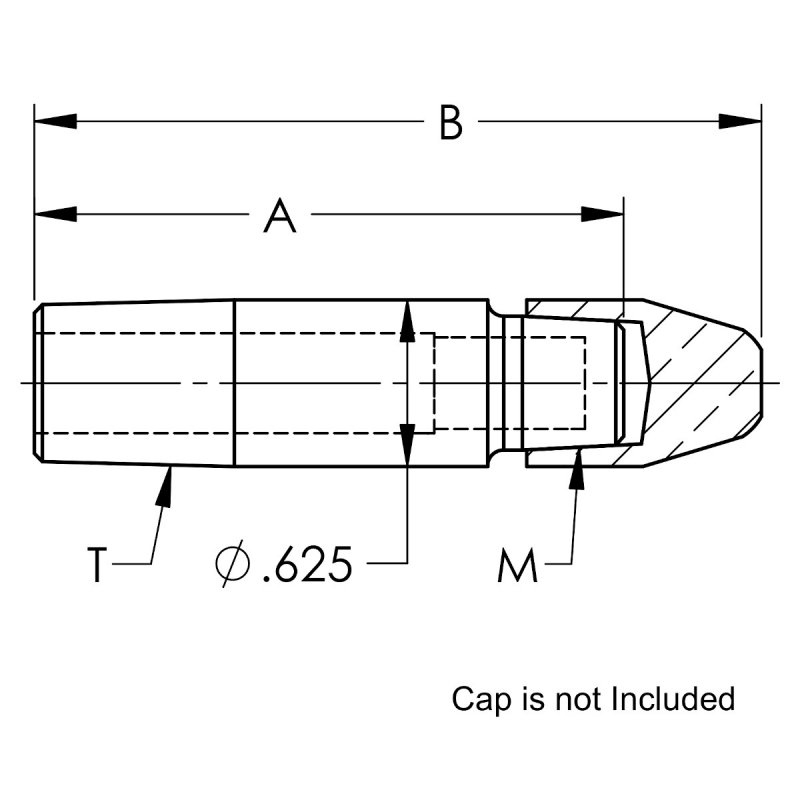

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Base Taper [T] 5RW
RWMA Cap Taper [M] 5RW Cap Taper
Overall Length [A] 4.21000
Outer Diameter 0.62500
Inner Diameter 0.37500
Assembled Length [B] 4.7500
Unit of Measure IN
