321-1656-23 CMW

Part #: 267-321-1656-23

Request 3D Model

Request 3D Model

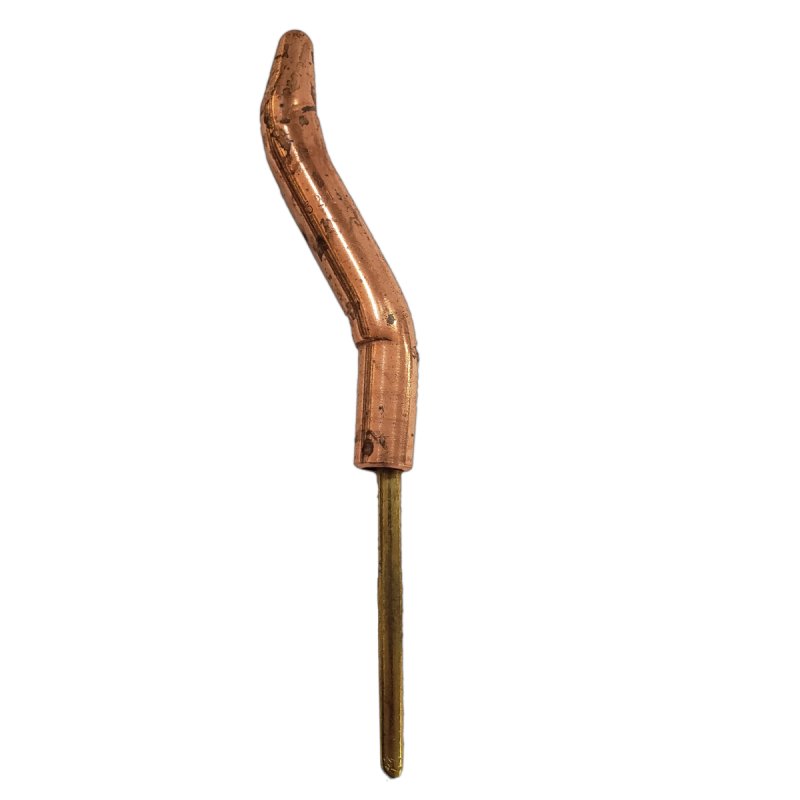

Standard Double Bend Electrodes are an economic solution to weld in a tight area or hard to reach area such as a flange or corner. This part has water cooling all the way to the nose which may enable them outlast cast or forged tips with a similar geometry.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 3.50 IN
  • The outside diameter is 0.482 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
  • The weld face is 0.188 IN
  • The offset is 1.00 IN
  • The part includes a water tube for cooling


RWMA Material Type RWMA Class 2 - C18200
RWMA Taper [T] 4RW
Nose Type A
Overall Length [A] 3.50000
Outer Diameter [B] 0.48200
Welding Face Dia. [C] 0.188
Offset [H] 1.0000
Water Hole Dia. [E] 0.28100
Taper to Bend Length [O] 0.8750
Bend to Nose Length [N] 0.7500
Unit of Measure IN
Tube Yes
