• 16-382109 CMW

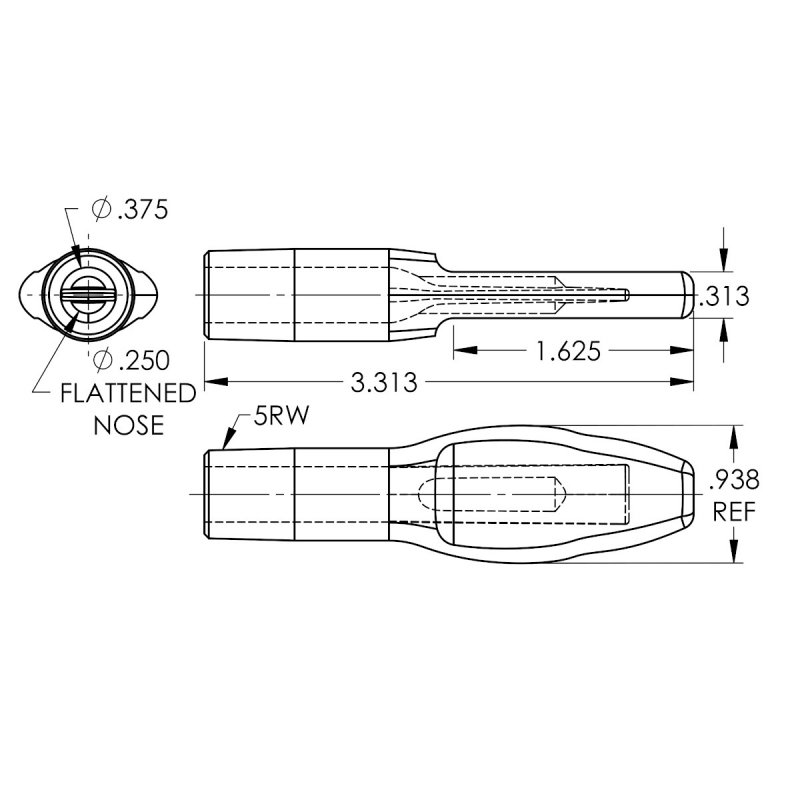

  • Sketch for 16-382109 CMW

16-382109 CMW

Part #: 270-16-382109

Request 3D Model

Request 3D Model

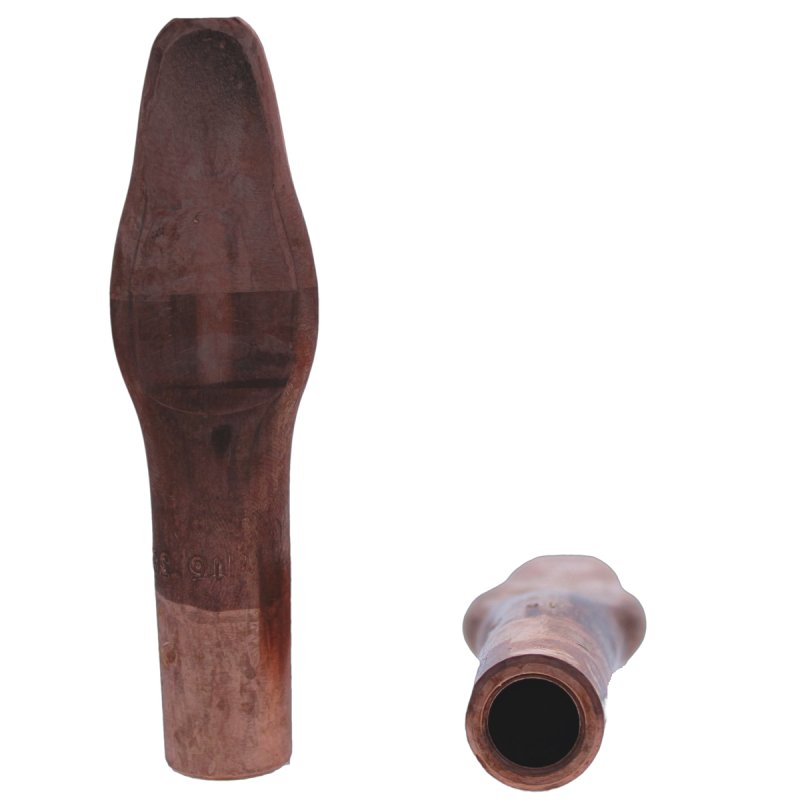

Spade Electrodes are standard electrodes with a flattened nose to allow a user to weld in tight spaces.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 3.313 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The tip has a spade or flattened nose for welds in tight spaces.
  • The weld face is 0.312 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 5RW
Nose Type Spade
Overall Length 3.31300
Outer Diameter 0.62500
Welding Face Dia. 0.3125
Water Hole Diameter 0.37500
Water Hole Depth 2.813
Unit of Measure IN
