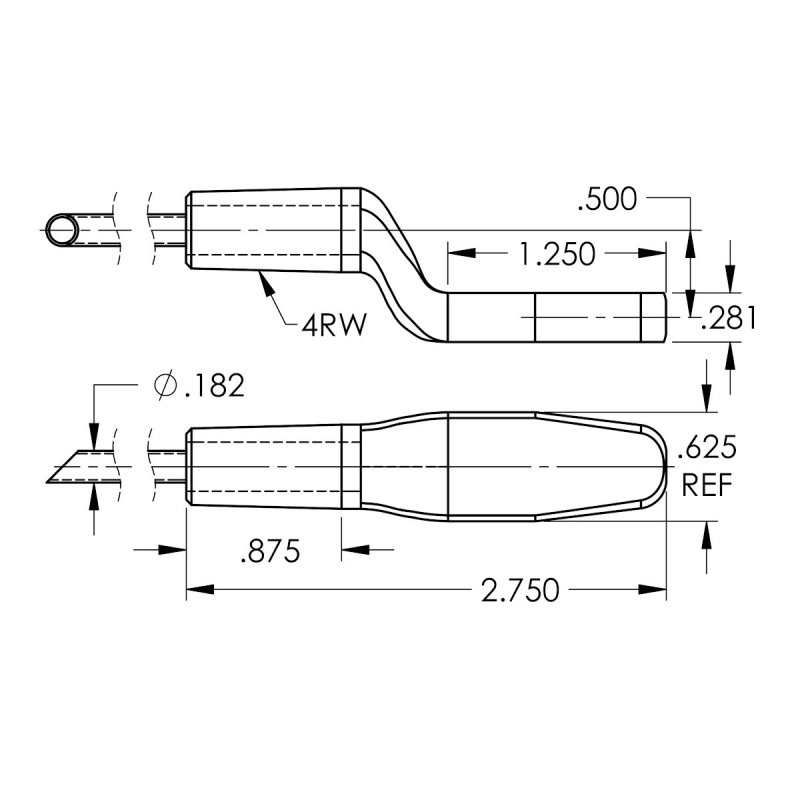

  • Sketch for 16-38201 CMW

16-38201 CMW

Part #: 270-16-38201

Request 3D Model

Request 3D Model

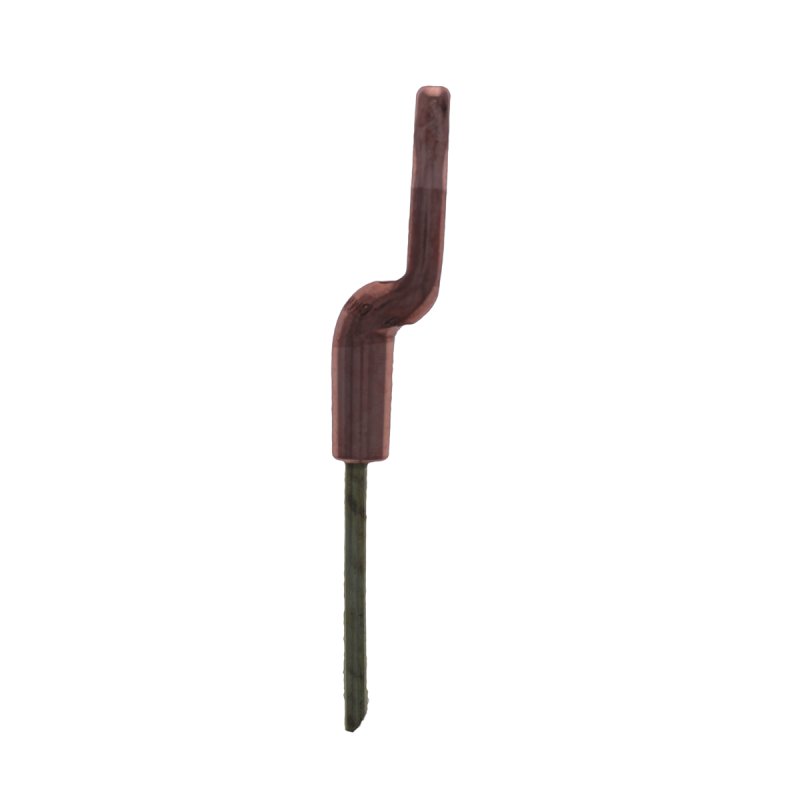

Spade Electrodes are standard electrodes with a flattened nose to allow a user to weld in tight spaces.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.750 IN
  • The outside diameter is 0.482 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The tip has a spade or flattened nose for welds in tight spaces.
  • The weld face is 0.281 IN
  • The offset is 0.50 IN
  • The part includes a water tube for cooling


RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 4RW
Nose Type Spade
Overall Length 2.75000
Outer Diameter 0.48200
Welding Face Dia. 0.28125
Offset 0.5000
Taper to Bend Length 0.8750
Bend to Nose Length 1.2500
Unit of Measure IN
Tube Yes
