Male Caps

CMW Male Caps

Male Caps are available in a variety of materials and nose configurations to meet any design requirement. They are an ideal choice for automated or high production rate environments because the caps can be changed quickly when the weld face wears out.

 The male cap design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

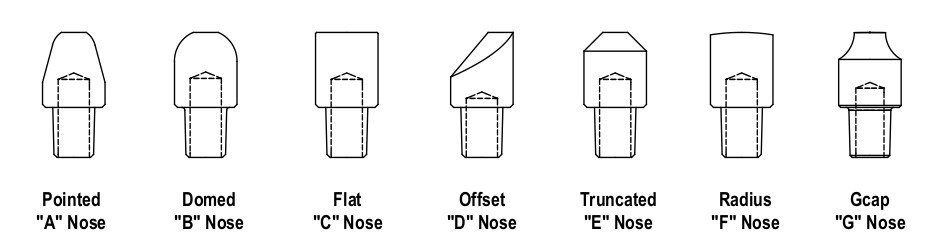

PartDescription RWMA Material Type RWMA Taper [T] Nose Type Overall Length [A] Outer Diameter [B] Welding Face Dia. [C] Unit of Measure Offset / Truncated Angle [D] Nose Engagement Angle [D]
2-ME25
ME25 CMW RWMA Class 2 - C18200 5RW Cap Taper E 1.25000 0.62500 0.25 IN 45.0
2-ME25Z
ME25Z CMW RWMA Class 2 - C18150 5RW Cap Taper E 1.25000 0.62500 0.25 IN 45.0
2-ME26
ME26 CMW RWMA Class 2 - C18200 6RW Cap Taper E 1.62500 0.75000 0.313 IN 45.0
2-ME26Z
ME26Z CMW RWMA Class 2 - C18150 6RW Cap Taper E 1.62500 0.75000 0.313 IN 45.0
2-MF14Z
MF14Z CMW RWMA Class 1 - C15000 4RW Cap Taper F 1.12500 0.50000 2 inch radius IN
2-MF15Z
MF15Z CMW RWMA Class 1 - C15000 5RW Cap Taper F 1.25000 0.62500 2 inch radius IN
2-MF16Z
MF16Z CMW RWMA Class 1 - C15000 6RW Cap Taper F 1.62500 0.75000 4 inch radius IN
2-MF24
MF24 CMW RWMA Class 2 - C18200 4RW Cap Taper F 1.12500 0.50000 2 inch radius IN
2-MF24Z
MF24Z CMW RWMA Class 2 - C18150 4RW Cap Taper F 1.12500 0.50000 2 inch radius IN
2-MF25
MF25 CMW RWMA Class 2 - C18200 5RW Cap Taper F 1.25000 0.62500 2 inch radius IN
2-MF25Z
MF25Z CMW RWMA Class 2 - C18150 5RW Cap Taper F 1.25000 0.62500 2 inch radius IN
2-MF26
MF26 CMW RWMA Class 2 - C18200 6RW Cap Taper F 1.62500 0.75000 4 inch radius IN
2-MF26Z
MF26Z CMW RWMA Class 2 - C18150 6RW Cap Taper F 1.62500 0.75000 4 inch radius IN
2-MG244
MG244 CMW RWMA Class 2 - C18200 4RW Cap Taper G 1.12500 0.50000 0.25 IN
2-MG254
MG254 CMW RWMA Class 2 - C18200 5RW Cap Taper G 1.25000 0.62500 0.25 IN
2-MG255
MG255 CMW RWMA Class 2 - C18200 5RW Cap Taper G 1.25000 0.62500 0.313 IN
2-MG266
MG266 CMW RWMA Class 2 - C18200 6RW Cap Taper G 1.62500 0.75000 0.375 IN
2-MGD244
MGD244 CMW RWMA Class 2 - C18200 4RW Cap Taper G 1.12500 0.50000 0.25 IN
2-MGD244-3001
MGD244-3001 CMW RWMA Class 2 - C18200 4RW Cap Taper G 1.12500 0.50000 0.25 IN 30.0
2-MGD254
MGD254 CMW RWMA Class 2 - C18200 5RW Cap Taper G 1.25000 0.62500 0.25 IN
2-MGD254-1501
MGD254-1501 CMW RWMA Class 2 - C18200 5RW Cap Taper G 1.25000 0.62500 0.25 IN 15.0
2-MGD254-3001
MGD254-3001 CMW RWMA Class 2 - C18200 5RW Cap Taper G 1.25000 0.62500 0.25 IN 30.0
2-MGD255
MGD255 CMW RWMA Class 2 - C18200 5RW Cap Taper G 1.25000 0.62500 0.313 IN
2-MGD255-1501
MGD255-1501 CMW RWMA Class 2 - C18200 5RW Cap Taper G 1.25000 0.62500 0.313 IN 15.0
2-MGD255-3001
MGD255-3001 CMW RWMA Class 2 - C18200 5RW Cap Taper G 1.25000 0.62500 0.313 IN 30.0
2-MGD266
MGD266 CMW RWMA Class 2 - C18200 6RW Cap Taper G 1.62500 0.75000 0.375 IN
2-MA14Z
MA14Z CMW RWMA Class 1 - C15000 4RW Cap Taper A 1.12500 0.50000 0.188 IN
2-MA15Z
MA15Z CMW RWMA Class 1 - C15000 5RW Cap Taper A 1.25000 0.62500 0.25 IN
2-MA16Z
MA16Z CMW RWMA Class 1 - C15000 6RW Cap Taper A 1.62500 0.75000 0.313 IN
2-MA24
MA24 CMW RWMA Class 2 - C18200 4RW Cap Taper A 1.12500 0.50000 0.188 IN
2-MA24Z
MA24Z CMW RWMA Class 2 - C18150 4RW Cap Taper A 1.12500 0.50000 0.188 IN
2-MA25
MA25 CMW RWMA Class 2 - C18200 5RW Cap Taper A 1.25000 0.62500 0.25 IN
2-MA25Z
MA25Z CMW RWMA Class 2 - C18150 5RW Cap Taper A 1.25000 0.62500 0.25 IN
2-MA26
MA26 CMW RWMA Class 2 - C18200 6RW Cap Taper A 1.62500 0.75000 0.313 IN
2-MA26Z
MA26Z CMW RWMA Class 2 - C18150 6RW Cap Taper A 1.62500 0.75000 0.313 IN
2-MB14Z
MB14Z CMW RWMA Class 1 - C15000 4RW Cap Taper B 1.12500 0.50000 0.188 IN
2-MB15Z
MB15Z CMW RWMA Class 1 - C15000 5RW Cap Taper B 1.25000 0.62500 0.188 IN
2-MB24
MB24 CMW RWMA Class 2 - C18200 4RW Cap Taper B 1.12500 0.50000 0.188 IN
2-MB24Z
MB24Z CMW RWMA Class 2 - C18150 4RW Cap Taper B 1.12500 0.50000 0.188 IN
2-MB25
MB25 CMW RWMA Class 2 - C18200 5RW Cap Taper B 1.25000 0.62500 0.188 IN
2-MB25Z
MB25Z CMW RWMA Class 2 - C18150 5RW Cap Taper B 1.25000 0.62500 0.188 IN
2-MB26
MB26 CMW RWMA Class 2 - C18200 6RW Cap Taper B 1.62500 0.75000 0.25 IN
2-MB26Z
MB26Z CMW RWMA Class 2 - C18150 6RW Cap Taper B 1.62500 0.75000 0.25 IN
2-MC14Z
MC14Z CMW RWMA Class 1 - C15000 4RW Cap Taper C 1.12500 0.50000 0.5 IN
2-MC15Z
MC15Z CMW RWMA Class 1 - C15000 5RW Cap Taper C 1.25000 0.62500 0.625 IN
2-MC16Z
MC16Z CMW RWMA Class 1 - C15000 6RW Cap Taper C 1.62500 0.75000 0.75 IN
2-MC24
MC24 CMW RWMA Class 2 - C18200 4RW Cap Taper C 1.12500 0.50000 0.5 IN
2-MC24Z
MC24Z CMW RWMA Class 2 - C18150 4RW Cap Taper C 1.12500 0.50000 0.5 IN
2-MC25
MC25 CMW RWMA Class 2 - C18200 5RW Cap Taper C 1.25000 0.62500 0.625 IN
2-MC25Z
MC25Z CMW RWMA Class 2 - C18150 5RW Cap Taper C 1.25000 0.62500 0.625 IN
2-MC26
MC26 CMW RWMA Class 2 - C18200 6RW Cap Taper C 1.62500 0.75000 0.75 IN
2-MC26Z
MC26Z CMW RWMA Class 2 - C18150 6RW Cap Taper C 1.62500 0.75000 0.75 IN
2-MD14Z
MD14Z CMW RWMA Class 1 - C15000 4RW Cap Taper D 1.12500 0.50000 0.188 IN 40.0
2-MD15Z
MD15Z CMW RWMA Class 1 - C15000 5RW Cap Taper D 1.25000 0.62500 0.25 IN 40.0
2-MD24
MD24 CMW RWMA Class 2 - C18200 4RW Cap Taper D 1.12500 0.50000 0.188 IN 40.0
2-MD24Z
MD24Z CMW RWMA Class 2 - C18150 4RW Cap Taper D 1.12500 0.50000 0.188 IN 40.0
2-MD25
MD25 CMW RWMA Class 2 - C18200 5RW Cap Taper D 1.25000 0.62500 0.25 IN 40.0
2-MD25Z
MD25Z CMW RWMA Class 2 - C18150 5RW Cap Taper D 1.25000 0.62500 0.25 IN 40.0
2-MD26
MD26 CMW RWMA Class 2 - C18200 6RW Cap Taper D 1.62500 0.75000 0.313 IN 45.0
2-MD26Z
MD26Z CMW RWMA Class 2 - C18150 6RW Cap Taper D 1.62500 0.75000 0.313 IN 45.0
2-ME14Z
ME14Z CMW RWMA Class 1 - C15000 4RW Cap Taper E 1.12500 0.50000 0.188 IN 45.0
2-ME15Z
ME15Z CMW RWMA Class 1 - C15000 5RW Cap Taper E 1.25000 0.62500 0.25 IN 45.0
2-ME24
ME24 CMW RWMA Class 2 - C18200 4RW Cap Taper E 1.12500 0.50000 0.188 IN 45.0
2-ME24Z
ME24Z CMW RWMA Class 2 - C18150 4RW Cap Taper E 1.12500 0.50000 0.188 IN 45.0
