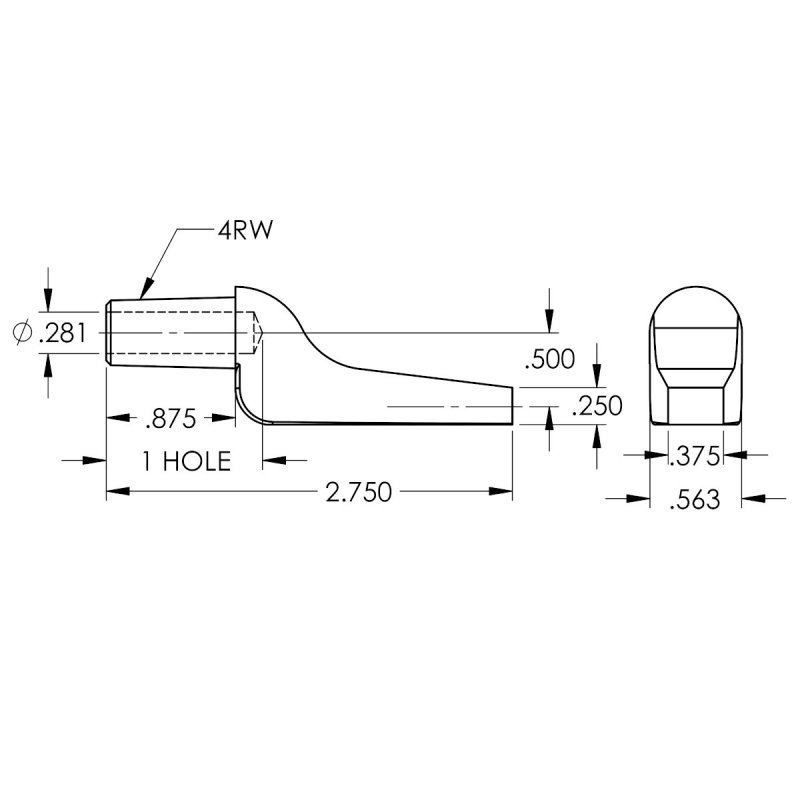

  • Sketch for 16-3820  CMW

16-3820 CMW

Part #: 270-16-3820

Request 3D Model

Request 3D Model

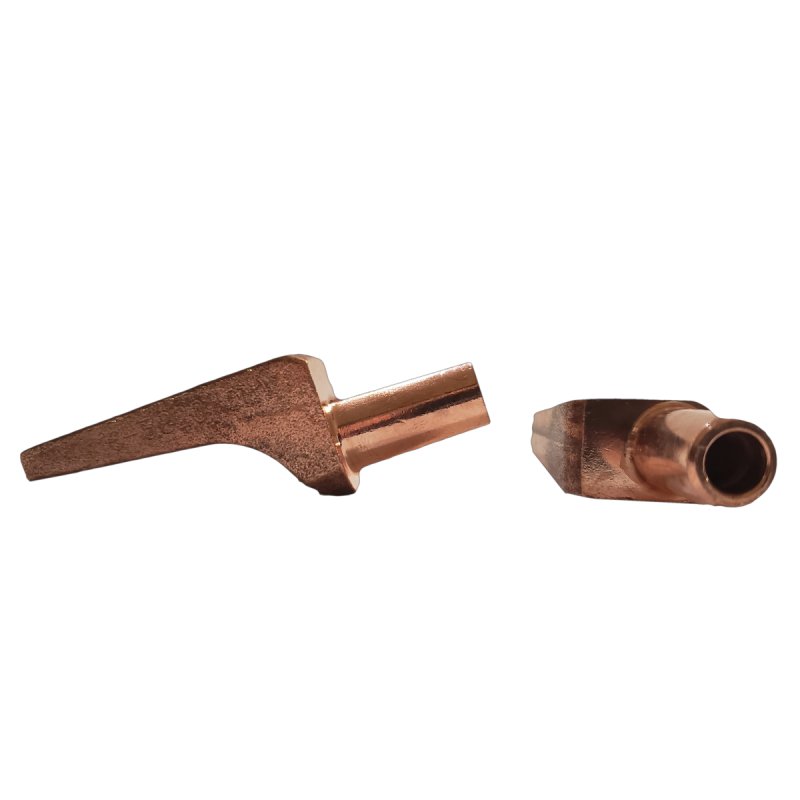

Gun Electrodes are designed to fit into tight spaces or to weld a flange. They have a rectangular weld face.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.75 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The tip has a rectangular nose.
  • The weld face is 0.25 x 0.375 IN
  • The offset is 0.5 IN
  • The part is made from a casting

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 4RW
Nose Type Rectangle
Overall Length 2.75000
Welding Face Dia. 0.25 x 0.375
Offset 0.5000
Taper Length 0.8750
Unit of Measure IN
Cast Part Yes
