• 16-38353  CMW

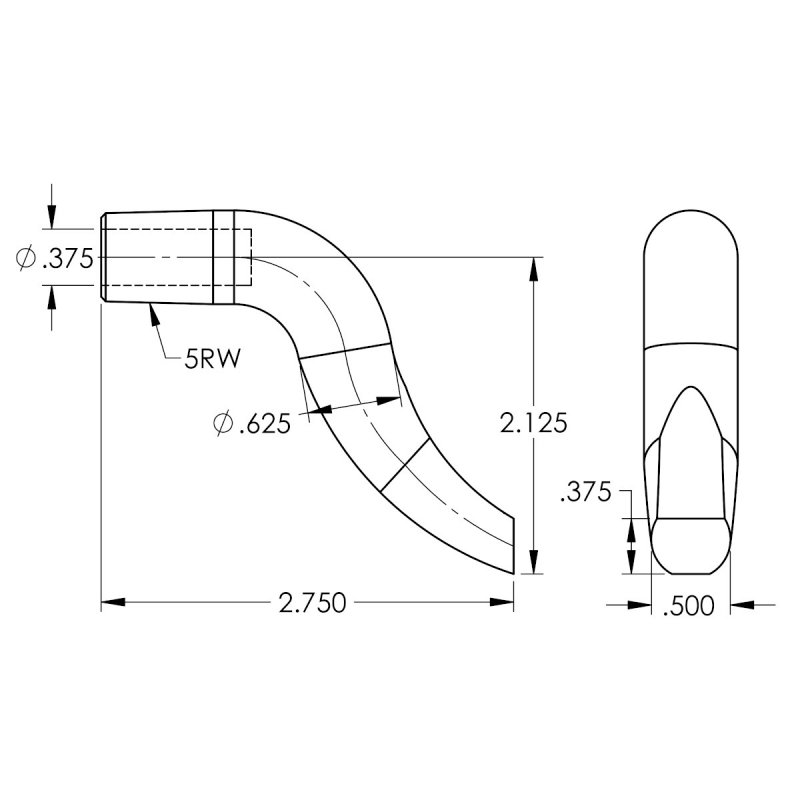

  • Sketch for 16-38353  CMW

16-38353 CMW

Part #: 286-16-38353

Request 3D Model

Request 3D Model


Crank Electrodes are very strong double bend electrodes designed for higher force applications than standard double bend electrodes because the water hole does not reach the nose.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.750 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The tip has a rectangular nose.
  • The weld face is 0.375 x 0.5 IN
  • The offset is 2.12 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 5RW
Nose Type Rectangle
Overall Length 2.75000
Outer Diameter 0.62500
Welding Face Dia. 0.375 x 0.5
Offset 2.1250
Water Hole Diameter 0.37500
Unit of Measure IN
