MP30216-20 CMW

Part #: 264-MP30216-20

Request 3D Model

Request 3D Model

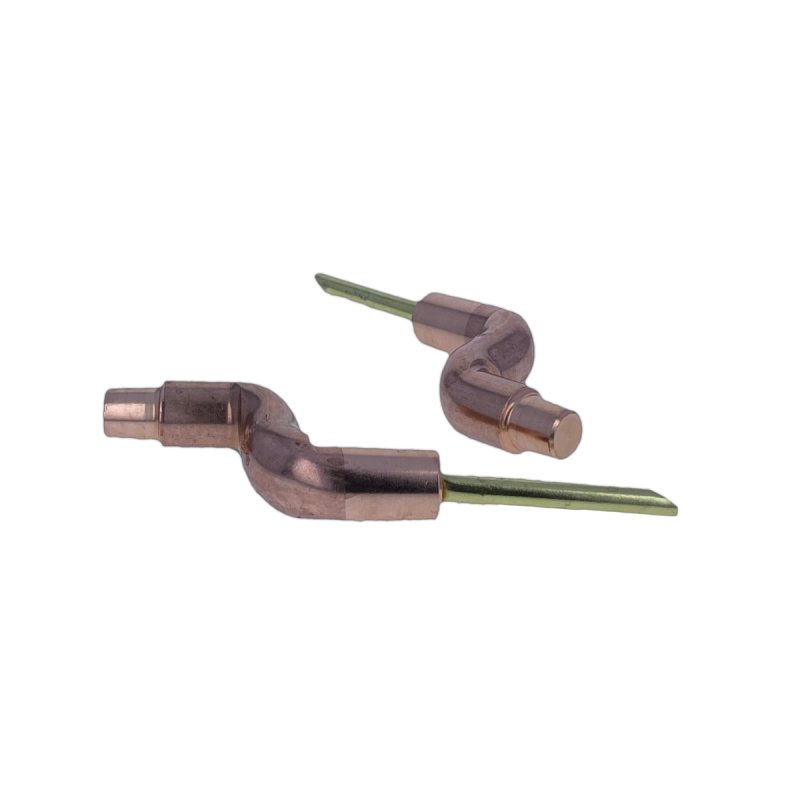

Bent Shanks for Female Caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine where an offset is required. The shank has a water hole through the entire part to ensure the cap is properly cooled.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.77 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The part holds a subcomponent via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The assembled length is 3.43 IN
  • The offset is 1.25 IN
  • The part includes a water tube for cooling

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Base Taper [T] 5RW
RWMA Cap Taper [M] 5RW Cap Taper
Overall Length [A] 2.77000
Outer Diameter 0.62500
Offset [C] 1.2500
Inner Diameter 0.37500
Assembled Length [B] 3.4300
Unit of Measure IN
Tube Yes
